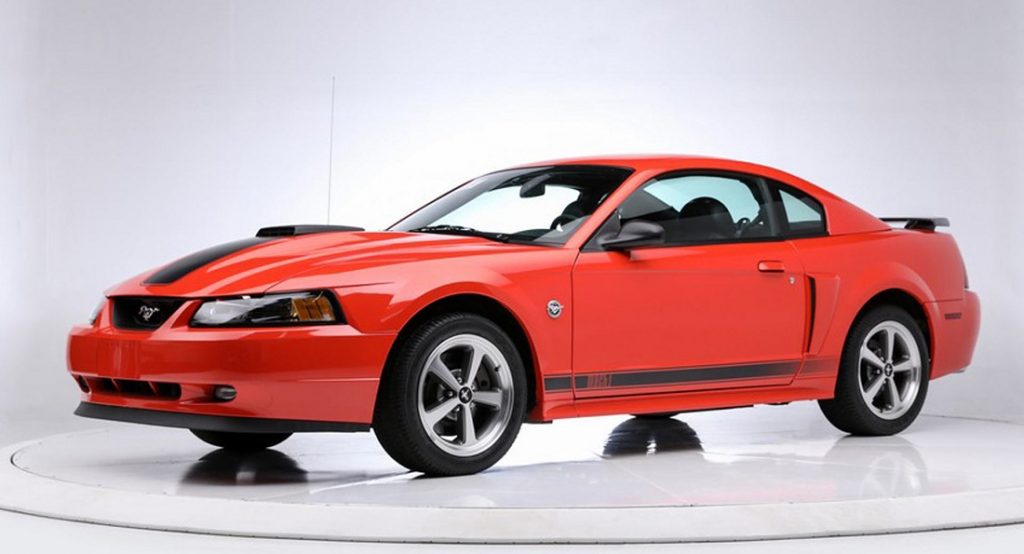

2004 Ford Mustang Mach 1

Back for One Final Year

Because of a strong enthusiast response to the introduction of the 2003 Mustang Mach 1, Ford committed to another sales year of Mach 1 production to slot between the Mustang GT and the SVT Mustang Cobra.

Since the Mach 1 was a performance model above the GT, it’s 4.6-liter V8 engine featured some enhancements, including high-flow cylinder heads, special cams and a sporty exhaust. These changes enable the mill to produce 305 hp and 320 lb/ft of torque. It was available as either and automatic or manual transmission.

The 2004 Mach 1 included 17-inch, 5-spoke Heritage (Magnum 500-style) wheels with the galloping pony logo inspired by the 1969-1973 Mustangs Mach 1 wheel design and 1960s-style “comfort weave” trimmed black leather seats.

The Mach-1 could be ordered in Azure Blue, a Mach-1 only paint color; or Competition Orange, Oxford White, Screaming Yellow, Dark Shadow Gray, Black, and Torch Red.

Ford produced 7,137 Mach 1’s in 2004, slightly less than the 2003s. For a full split and details of the 2004 Mach 1 production numbers check out our in-depth post.

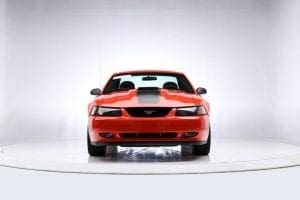

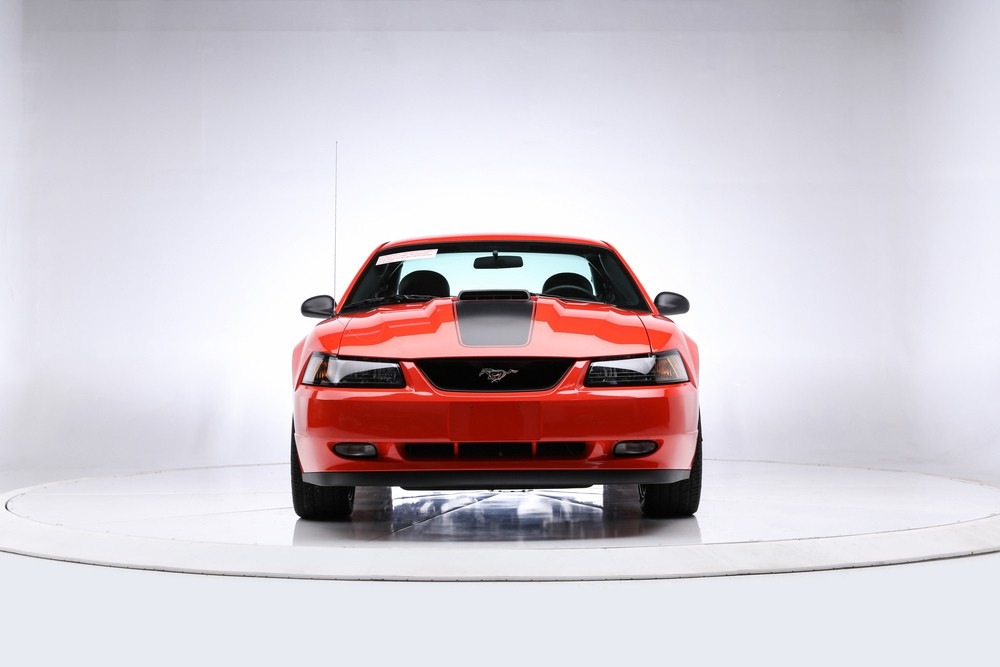

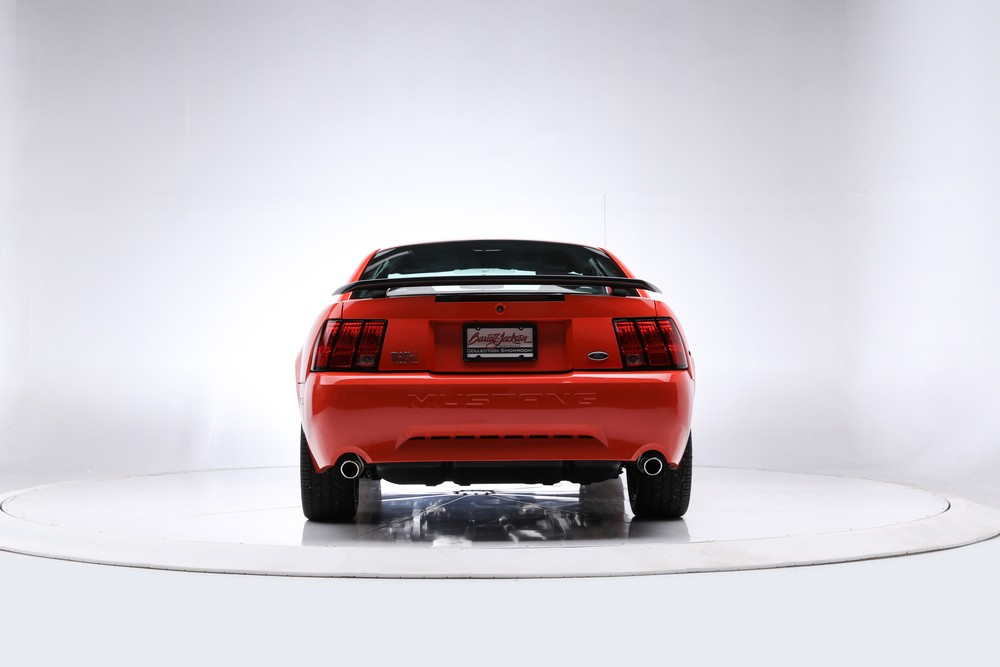

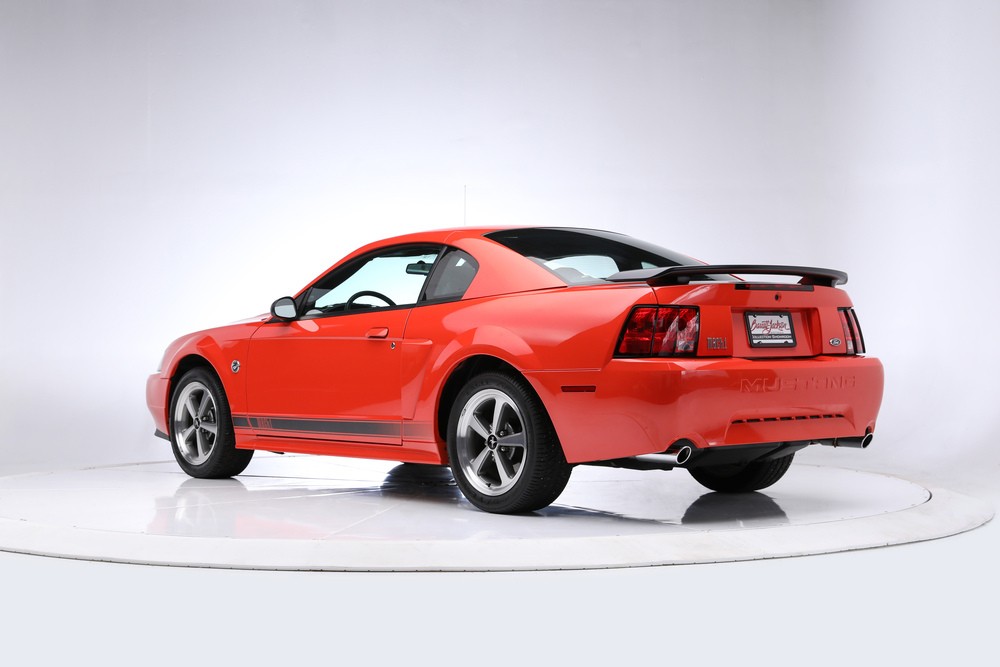

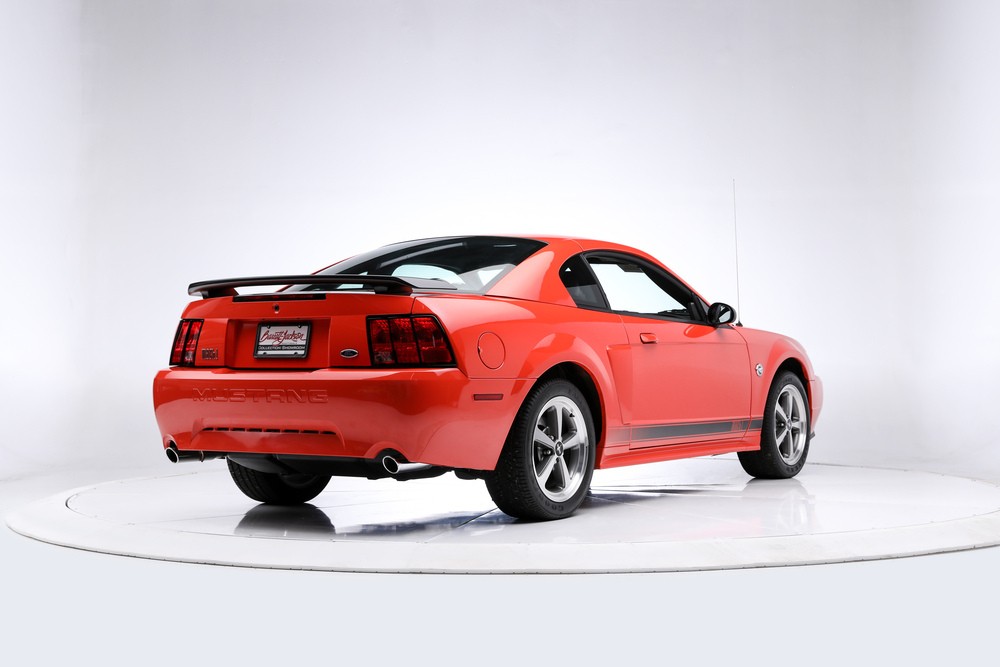

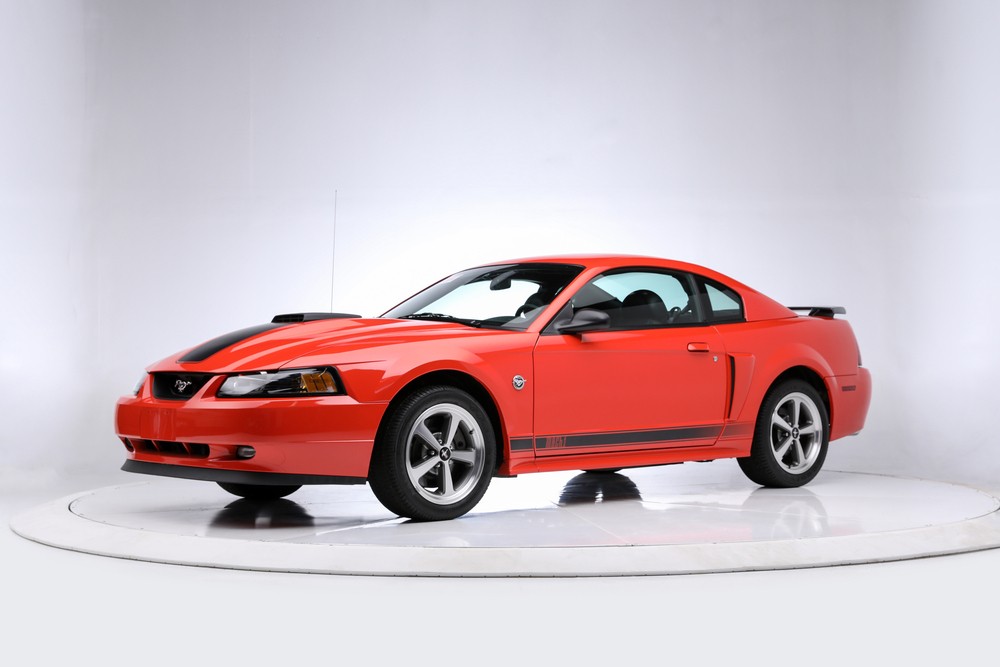

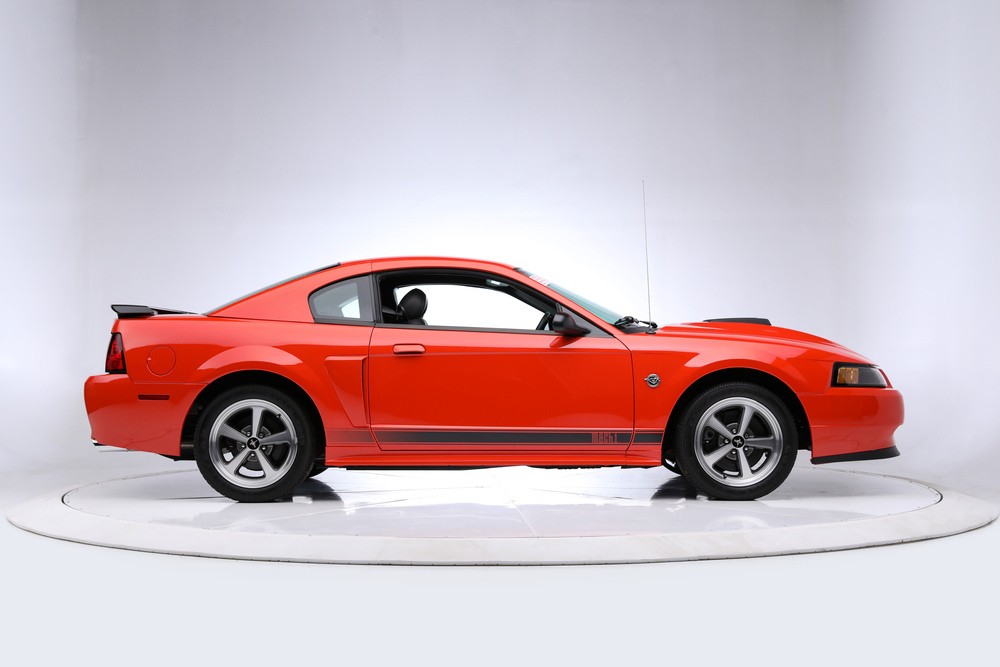

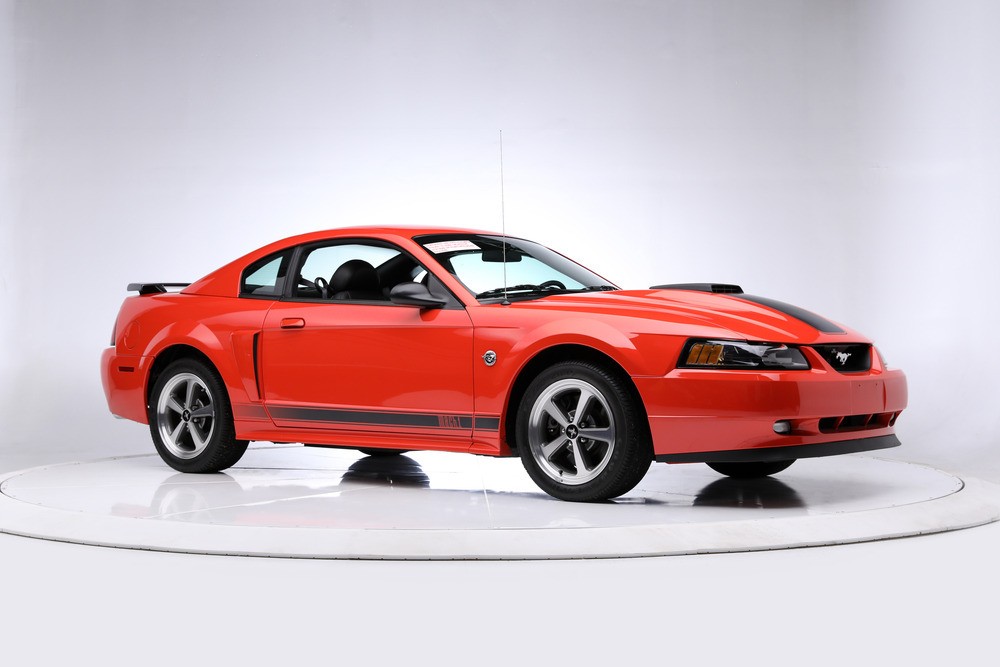

Pictures

Specifications

Model & Year	2004 Mustang Mach 1
built at	Detroit, Michigan, USA
engine	MOD V8
position	Front Longitudinal
valvetrain	DOHC
displacement	4605 cc / 281.0 in³
bore	90.2 mm / 3.55 in
stroke	90 mm / 3.54 in
compression	10.1:1
power	223.7 kw / 300.0 bhp @ 6000 rpm
specific output	65.15 bhp per litre
bhp/weight	bhp per tonne
torque	406.75 nm / 300.0 ft lbs @ 4250 rpm
body / frame	Unit Steel
driven wheels	RWD
front tires	Goodyear 245/45ZR17 Eagle ZR45
rear tires	Goodyear 245/45ZR17 Eagle ZR45
front brakes	Brembo Vented Discs w/2-Pot Calipers,
f brake size	x 330 mm / x 13.0 in
rear brakes	Brembo Vented Discs w/Single-Pot Calipers,
r brake size	x 296 mm / x 11.7 in
front wheels	F 43.2 x 20.3 cm / 17.0 x 8.0 in
rear wheels	R 43.2 x 20.3 cm / 17.0 x 8.0 in
steering	Rack & Pinion w/Power Assist
f suspension	MacPherson Strut w/Spring on Lower Arm, Coil, Axle Damper,26.5 A
r suspension	4-Link Multi-Link w/Coil Springs on Lower Arm, Axel Damper,23mm
curb weight	1572 kg / 3466 lbs
wheelbase	2573 mm / 101.3 in
front track	1529 mm / 60.2 in
rear track	1539 mm / 60.6 in
length	4653 mm / 183.2 in
width	1856 mm / 73.1 in
height	1329 mm / 52.3 in
transmission	5-Speed Manual or 4-Speed Automatic
gear ratios	3.38:1, 2.00:1, 1.32:1, 1.00:1, 0.62:1, :1
final drive	3.55:1

Options

Features	Mach1
SOHC V6 Engine	–
4.6 L 3 valve V8 engine
4 wheel anti lock brakes	Std
Traction control	Std
5 speed manual transmission – with 3.31 rear axle (NA on V6 premium convertible)
5 speed manual transmission – with 3.55 rear axle	Std
4 speed automatic transmission w/ overdrive lockout	Opt
16″ painted aluminum wheels	–
16″ machined bright aluminum wheels -std on deluxe convert	–
16″ bright machined aluminum wheels with chrome spinners	–
17 ” painted aluminum wheels	–
17″ premium aluminum wheels with bright flange	–
17″ bright aluminum wheels	–
17″ Heritage aluminum wheels	Std
P225/55R BSW All season tires
P245/45ZR17 all season performance BSW tires	Std
Limited slip 3,27:1 rear axle	–
Limited slip 3.55:1 rear axle	Std
Quadra shock rear suspension	Std
Stainless steel dual exhaust with bright polished tips	–
Stainless steel dual exhaust with bright polished tips	Std
Cloth seating surfaces	–
Front reclining buckets	–
Mach1 Sport front leather trimmed buckets with comfort weave	Std
GT sport front bucket seats	–
Leather trimmed seats (Std on prem convertible)	NA
6 way power drivers seat	Std
Full center console with cup holders and arm rest	Std
Drivers footrest	Std
Tilt steering wheel	Std
Steering wheel mounted cruise control	Std
Power door locks	Std
2 power points	Std
Air conditioning	Std
Illuminated entry system	Std
Personal safety system for driver and passenger	Std
Power rack & pinion	Std
Power 4 wheel disc brakes	Std
Power windows	Std
Power side view mirrors	Std
Rear window defroster	Std
Intermittent windshield wipers	Std
AM/FM Radio with single CD player	–
Mach AM/FM stereo with single CD player and MP3	–
Mach 460 sound system AM/FM stereo w/ in dash 6 CD player	Std
Mach 1000 sound system AM/FM stereo w/ in dash 6 CD player	–
Front floor mats	Std
Leather wrapped steering wheel (std on premium convertible)	Std
Interior upgrade package	Opt
Speed control	Std

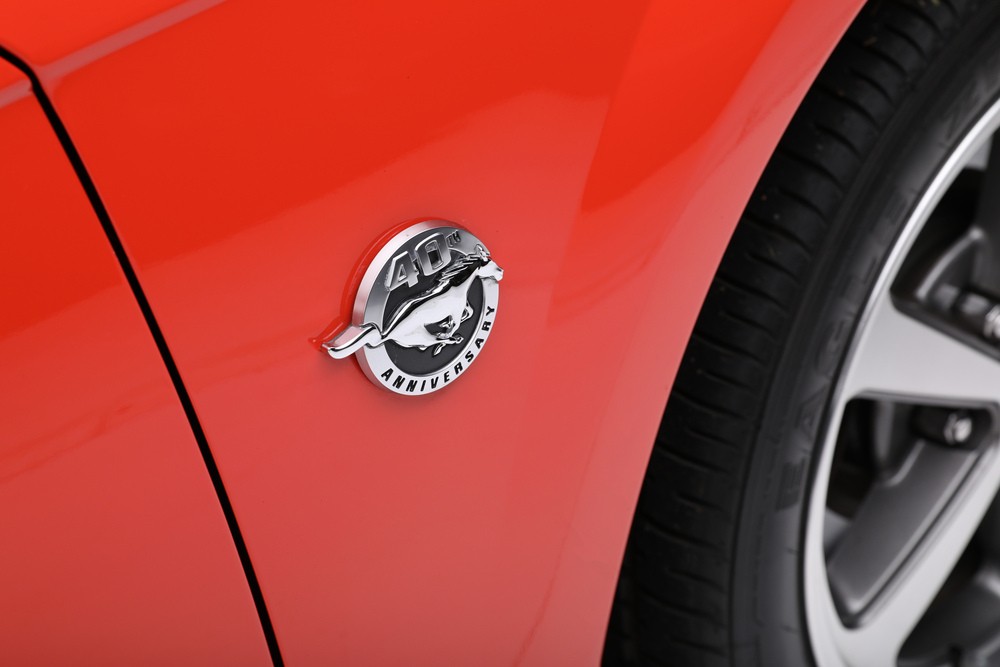

40th Anniversary package	–
Convertible soft top boot	–
Pony appearance package	–
Fog lamps	Std
GT hood with scoop	–

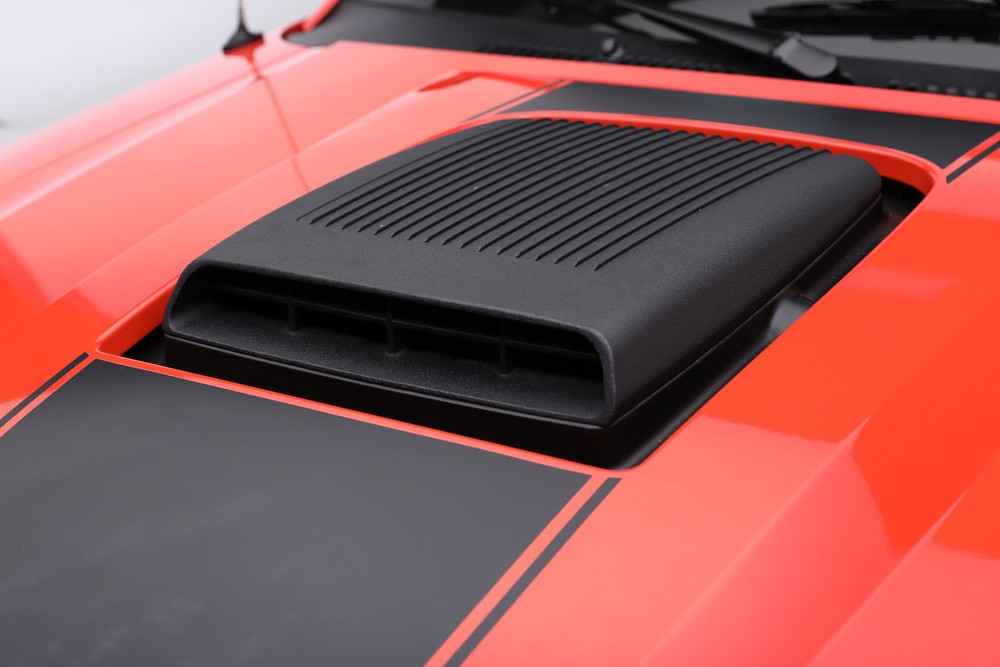

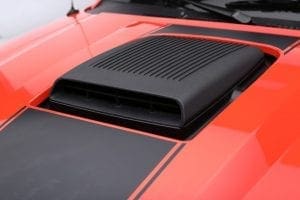

Shaker hood scoup	Std
Rear spoiler (NA on convertible)	Std
Spoiler delete	–
GT side scoops	Std
Tape stripe – Hood & bodyside	Std
