1965 Mustang – Electrical Information & Drawings

Electrical System Drawings & Harnesses for the 1965 Mustang

DIY Mustang fans rejoice because we have found a bunch of important electrical drawings and schematics for the 1965 Mustang. There electrical drawings for 1965 Mustang may not be pretty but that are extremely useful.

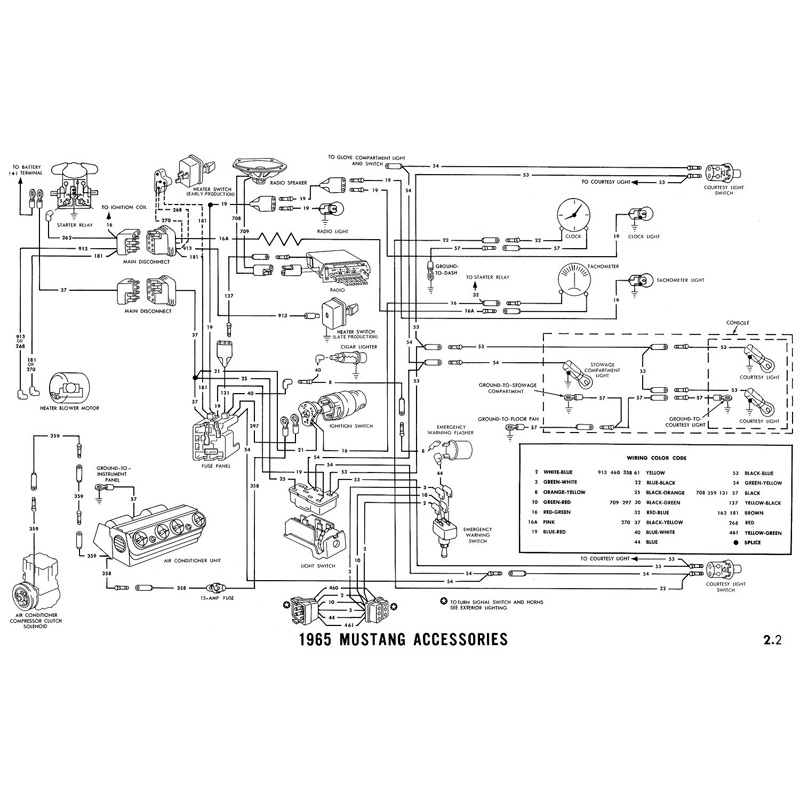

Electrical Accessories Schematic for 1965 Mustang

Electrical Harness for 1966 Mustang Interior Accessories

Electrical Harness for 1966 Mustang Interior Accessories

Electrical Harness Drawing for 1965 Mustang External

Electrical Harness Drawing for 1965 Mustang External

Electrical Schematic for 1965 Mustang A/C

Electrical Schematic for 1965 Mustang A/C

Electrical Schematic for 1965 Mustang Cigar Lighter

Electrical Schematic for 1965 Mustang Cigar Lighter

Electrical Schematic for 1965 Mustang Dash Cluster

Electrical Schematic for 1965 Mustang Dash Cluster

Electrical Schematic for 1965 Mustang Emergency Flashers

Electrical Schematic for 1965 Mustang Emergency Flashers

Electrical Schematic for 1965 Mustang Heater

Electrical Schematic for 1965 Mustang Heater

Electrical Schematic for 1965 Mustang Ignition & Charging

Electrical Schematic for 1965 Mustang Ignition & Charging

Electrical Schematic for 1965 Mustang Radio

Electrical Schematic for 1965 Mustang Radio

Electrical Schematic for 1965 Mustang Seat Belt Warning

Electrical Schematic for 1965 Mustang Seat Belt Warning
