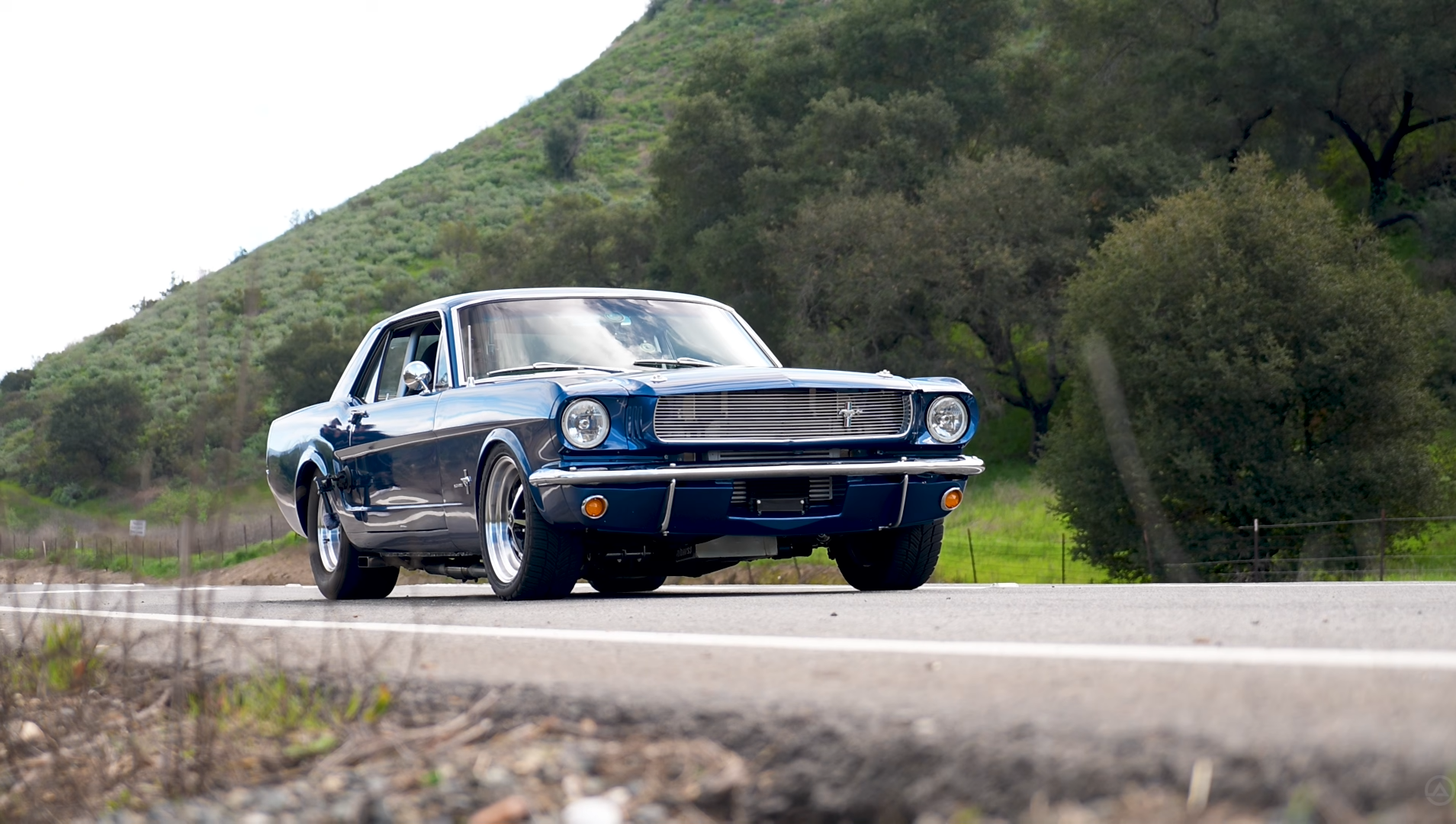

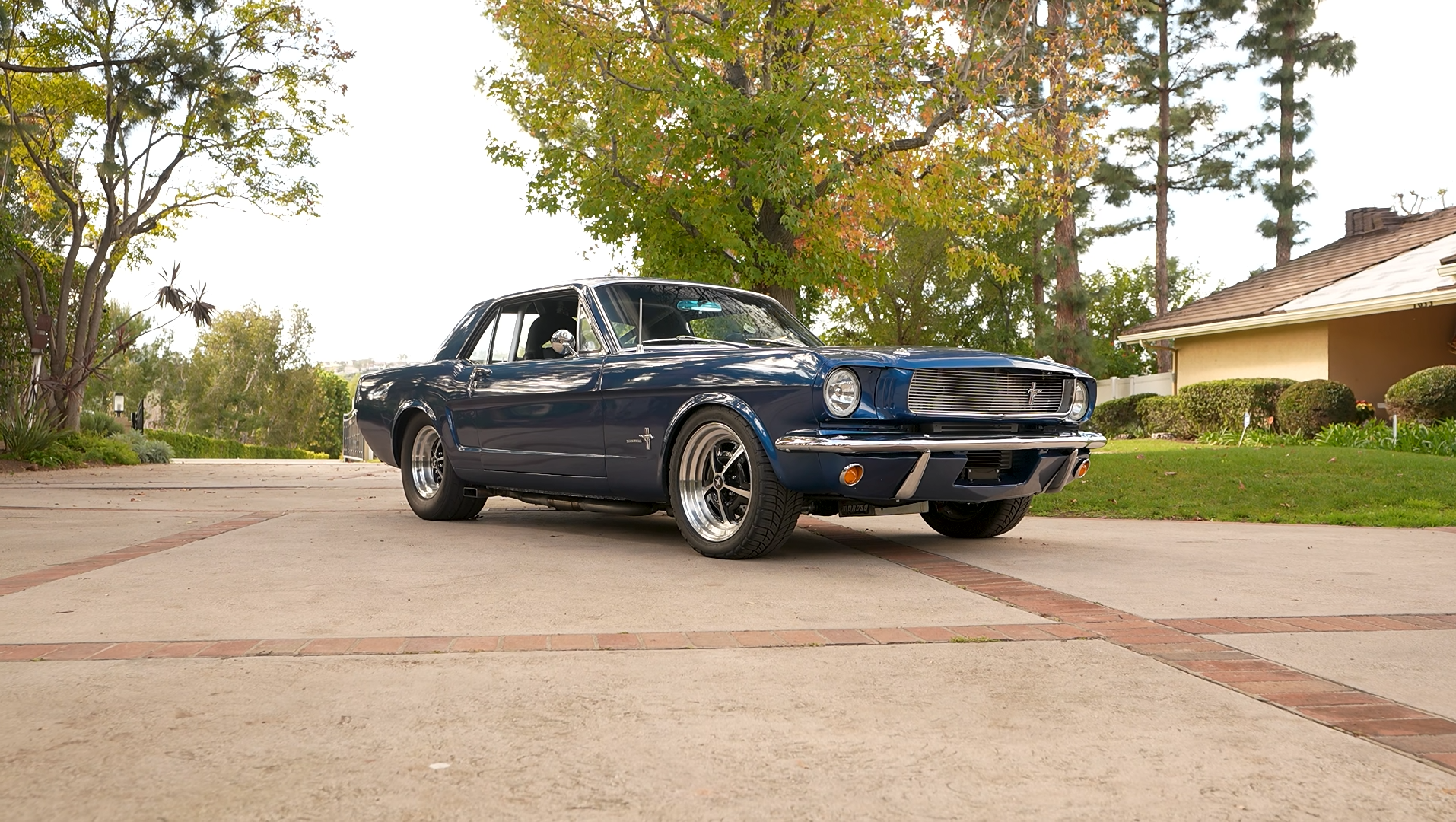

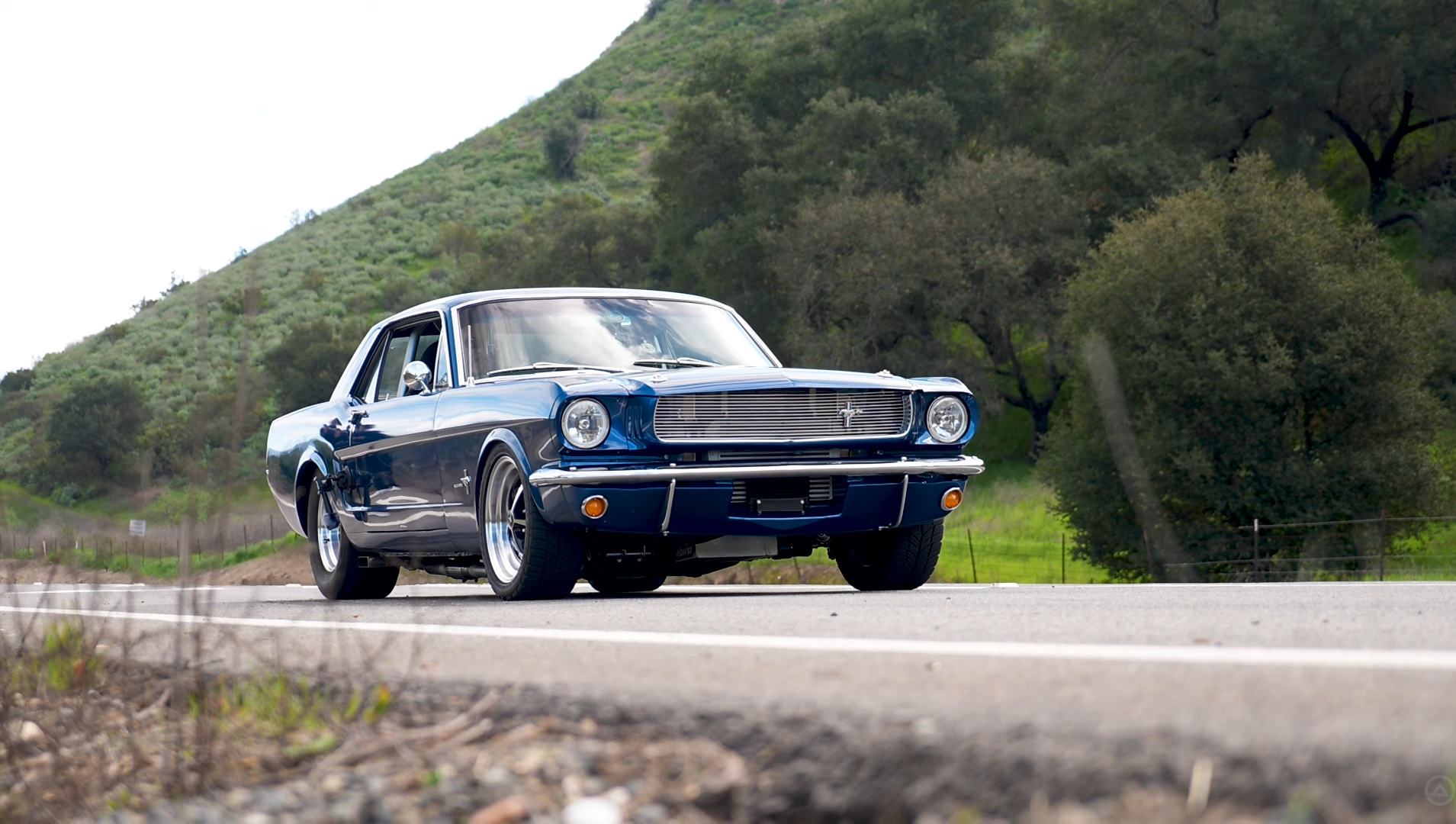

There’s something undeniably compelling about a classic Ford Mustang (first generation) done right—especially when it stays true to its roots while quietly integrating modern performance. This meticulously reworked 1966 Mustang Coupe featured in a video from Autotopia LA on YouTube is the perfect embodiment of that philosophy: old-school character, new-school capability, and a driver-focused setup that turns every mile into an experience.
Owned and built by an enthusiast with an engineering mindset, this Mustang isn’t just restored—it’s reimagined for real-world driving and street performance.

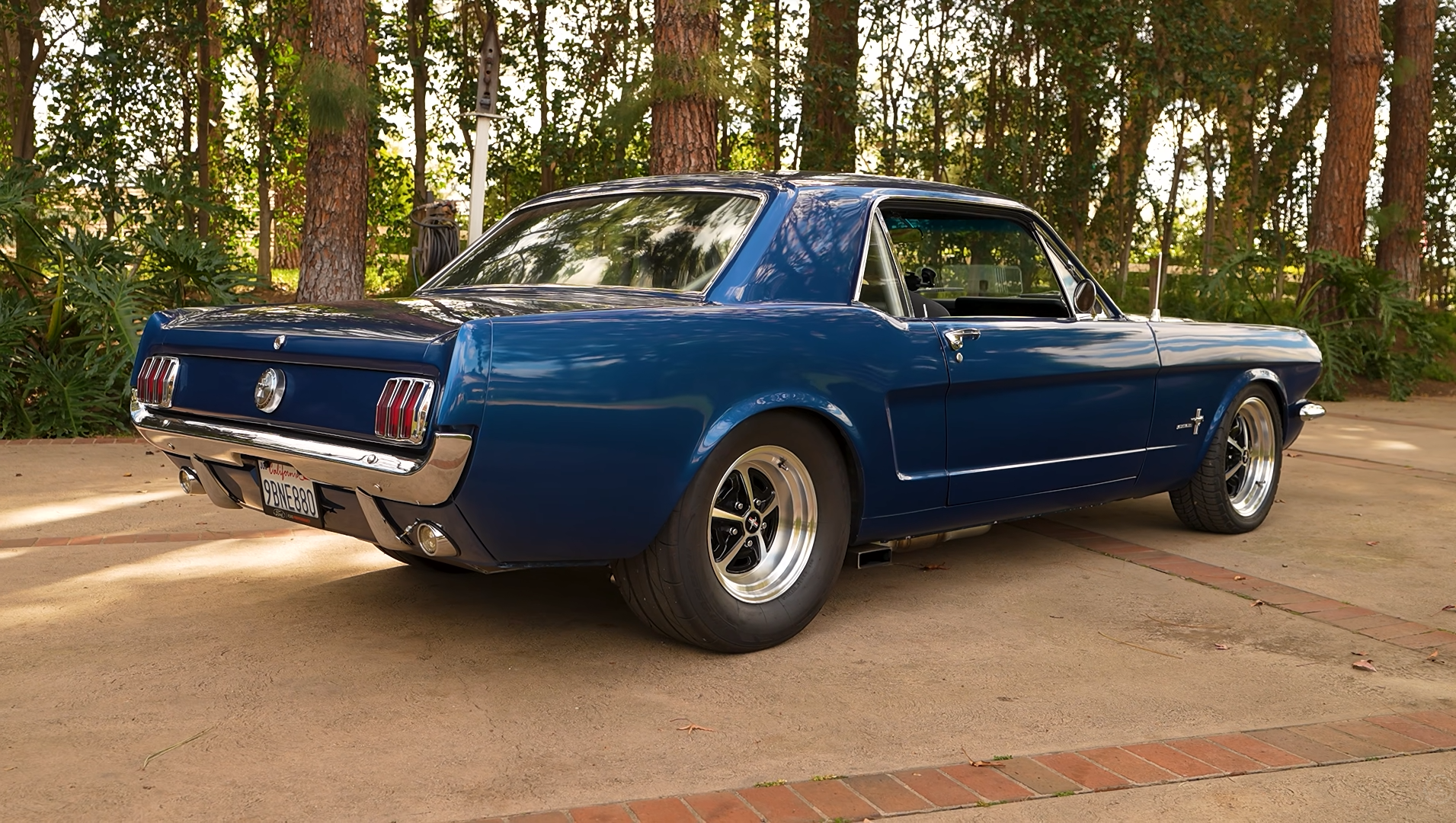

A Fresh Take on Classic Muscle: “Blue Abyss” Finish

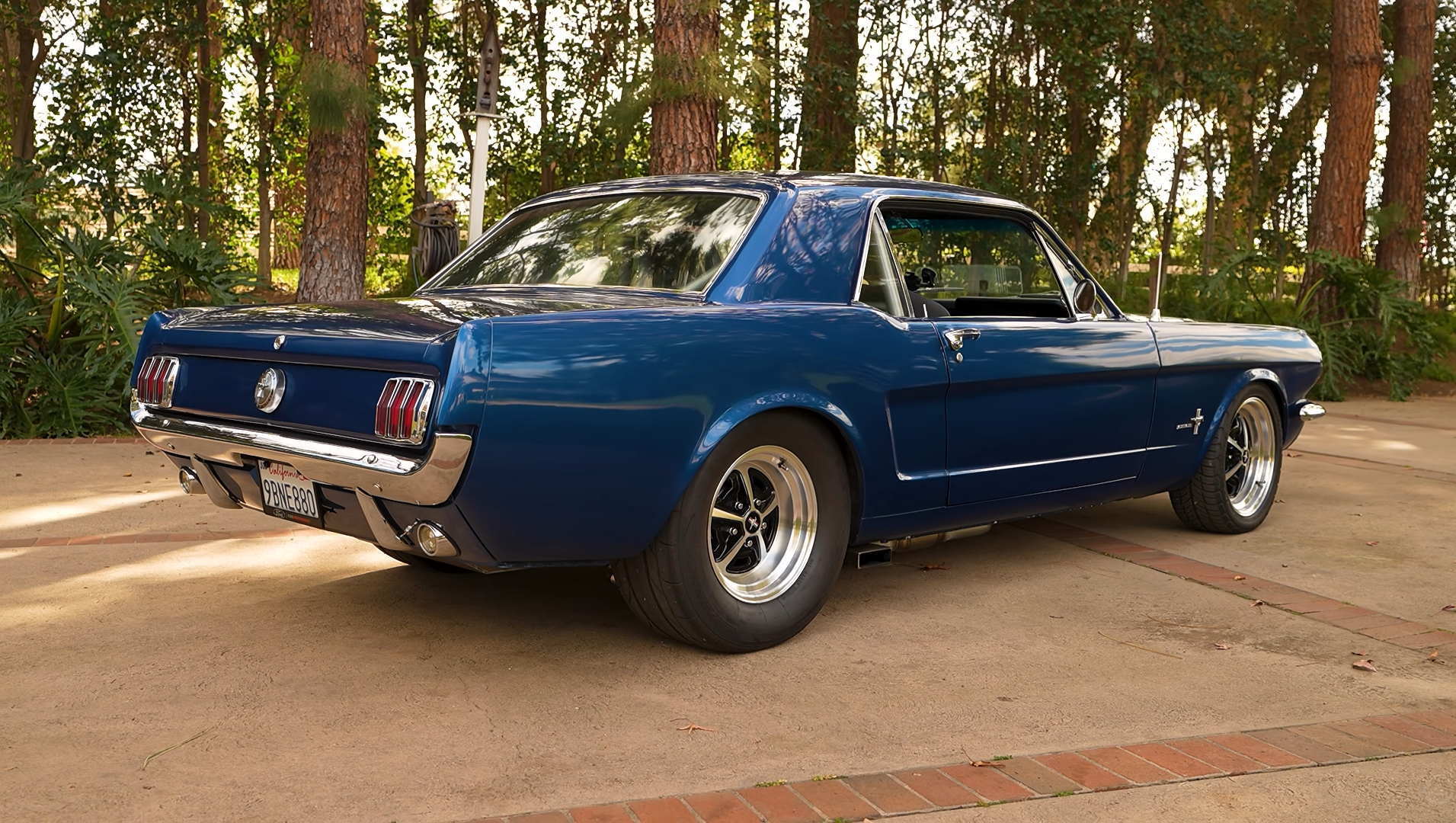

Ditching factory colors in favor of a custom “Blue Abyss” metallic, this coupe immediately stands apart. The subtle flake in the paint catches light beautifully, giving the car a modern edge without straying too far from its vintage DNA.
Unlike the more commonly seen fastbacks, this coupe configuration adds uniqueness—proof that you don’t need the most expensive body style to build something exceptional.
Powertrain Transformation: From 289 to Supercharged 347 Stroker
Originally equipped with a modest 289 V8, this Mustang now packs serious punch thanks to a 347 stroker small-block Ford—a popular upgrade derived from the legendary Ford 302 Windsor V8 architecture.
Key Engine Highlights:
- 347 stroker build (increased displacement for more torque)
- Forged internals for boost reliability
- Mild performance camshaft
- Centrifugal supercharger system from ProCharger
- Front-mounted intercooler (custom fitted)
The result?
- ~410 wheel horsepower
- ~440 lb-ft of torque
- Estimated higher output after additional tuning
All of this comes with a conservative 8 psi of boost, striking a balance between performance and long-term reliability.

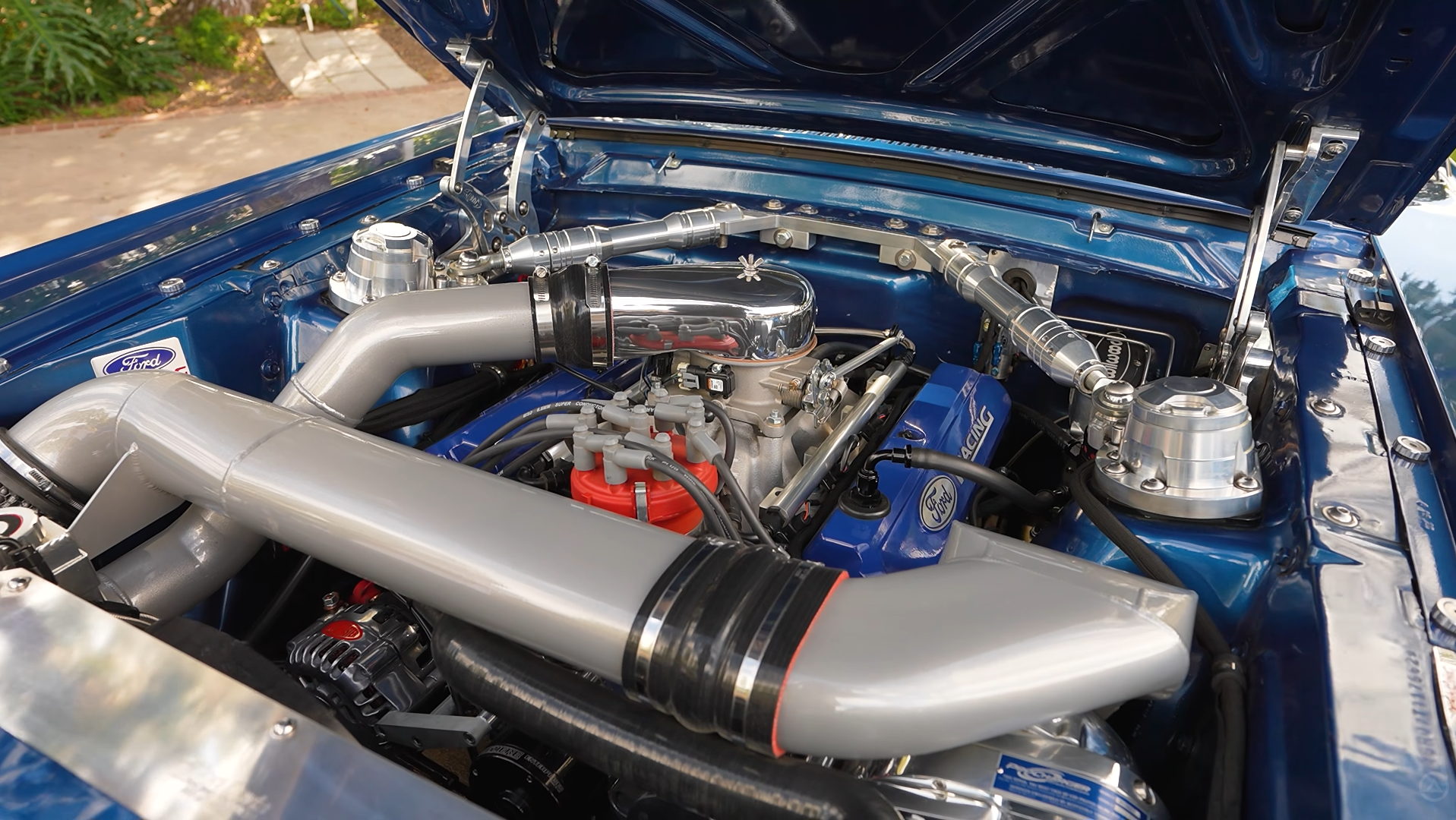

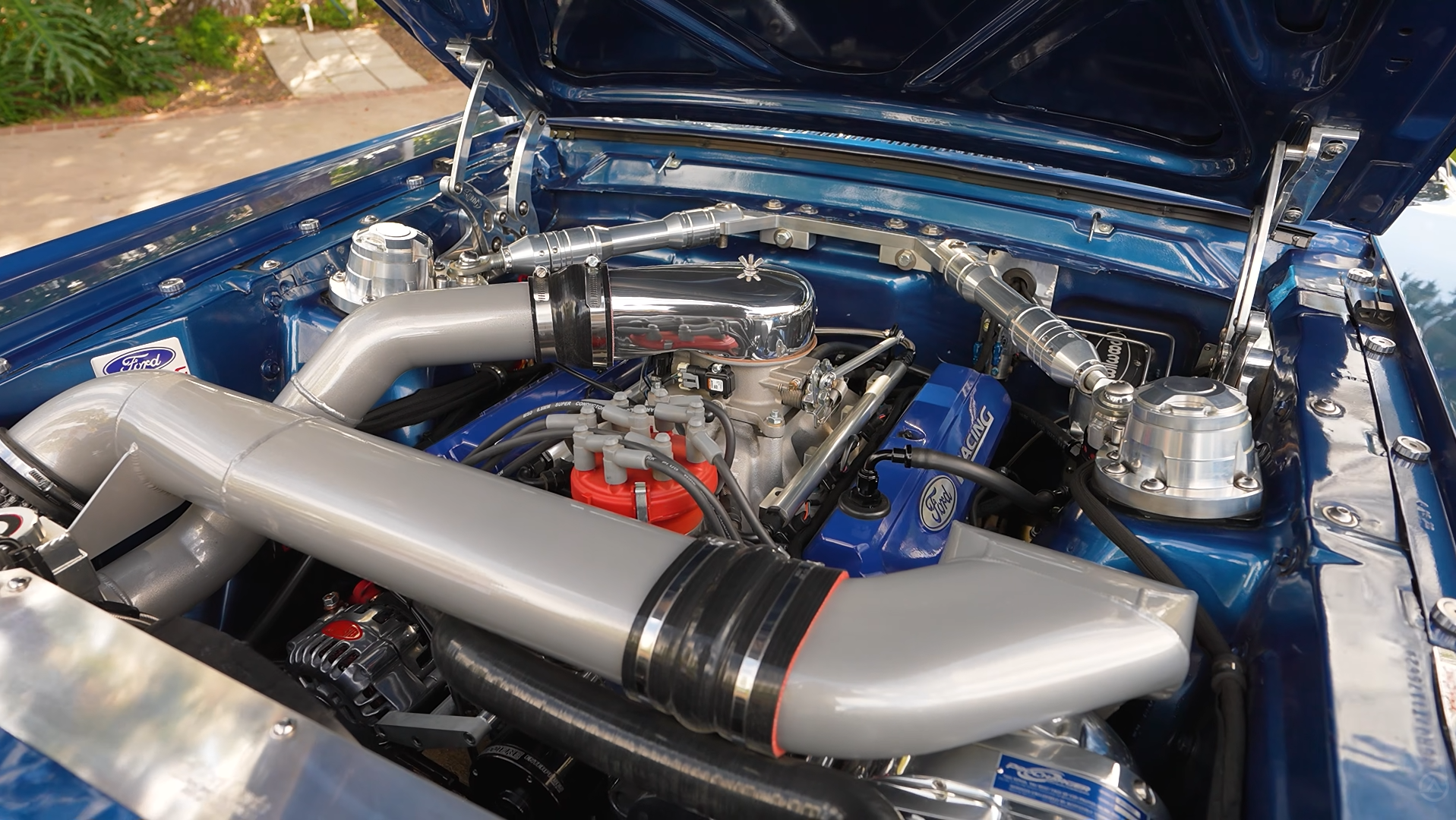

Engineering Challenges: Making Boost Fit in a Classic Bay
Unlike modern engine bays, early Mustangs are notoriously tight—especially with intact shock towers. Instead of cutting them out (a common modification), this build retains the factory structure and works around it.
Custom fabrication includes:
- Modified supercharger mounting brackets
- Clearanced pulleys and fan housing
- Precision intercooler piping routing
The result is a clean, fully functional forced-induction setup without compromising structural integrity.
Transmission & Drivetrain: Modern Functionality, Classic Feel
Power is sent through a Ford 4R70W transmission, a durable late-model automatic known for its adaptability.
Setup Details:
- 3-speed automatic + overdrive
- Electronic control via standalone transmission computer
- Multiple driving modes (street, sport, drag tuning)
- Rear gearing: 4.11 ratio for aggressive acceleration
The ability to tune shift points via a digital interface adds a modern layer of customization rarely seen in classic builds.
Chassis & Suspension: Built to Handle the Power
This Mustang isn’t just about straight-line speed—it’s engineered to handle.
Upgrades Include:
- Full **Total Control Products coilover suspension (front and rear)
- Reinforced chassis with integrated roll cage
- Subframe bracing and structural stiffening
- Mini-tubbed rear for wider tires
Despite the upgrades, the car maintains a surprisingly comfortable ride—firm, but far from punishing.
Steering Innovation: Electric Power Assist (EPAS)
One of the most clever modern touches is the electric power-assisted steering system tucked beneath the dash.
- Adjustable assist via dial
- Retains classic steering feel
- Eliminates bulky hydraulic components
With assist dialed down to just 5%, the car delivers authentic road feedback with subtle assistance—a rare sweet spot.
Braking Setup: Simple, Effective, Affordable
Braking performance comes from a smart mix of aftermarket and OEM components:
- Wilwood 4-piston front brakes
- Rear disc brakes sourced from a Ford Explorer
- Manual brake system (well-balanced due to vehicle weight)
This setup proves that you don’t need exotic parts everywhere—strategic upgrades can deliver excellent results.
Wheels, Tires & Stance: Classic Meets Drag Functionality
The car retains a vintage aesthetic with Magnum 500-style wheels, paired with a staggered setup:
- Front: 17-inch wheels with BFGoodrich tires
- Rear: 15-inch wheels with Nitto 555R drag radials
The wider rear rubber, combined with mini tubs, ensures maximum traction when boost hits.
Exhaust Solution: Side Exit by Necessity
Due to suspension geometry and limited clearance, a traditional rear-exit exhaust wasn’t feasible. The solution?
A clean side-exit exhaust system that:
- Avoids clearance issues
- Enhances sound presence
- Adds a subtle custom touch

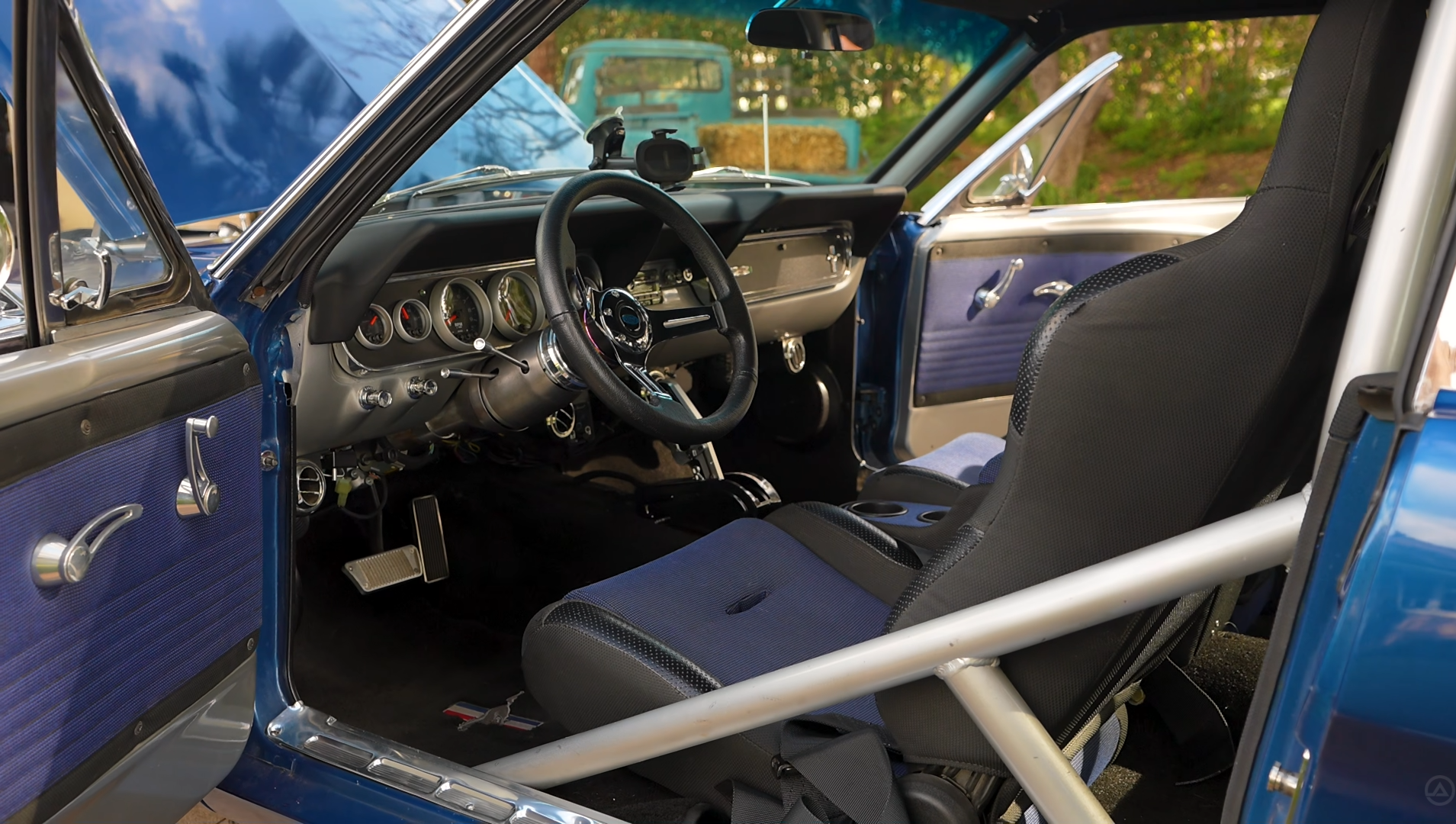

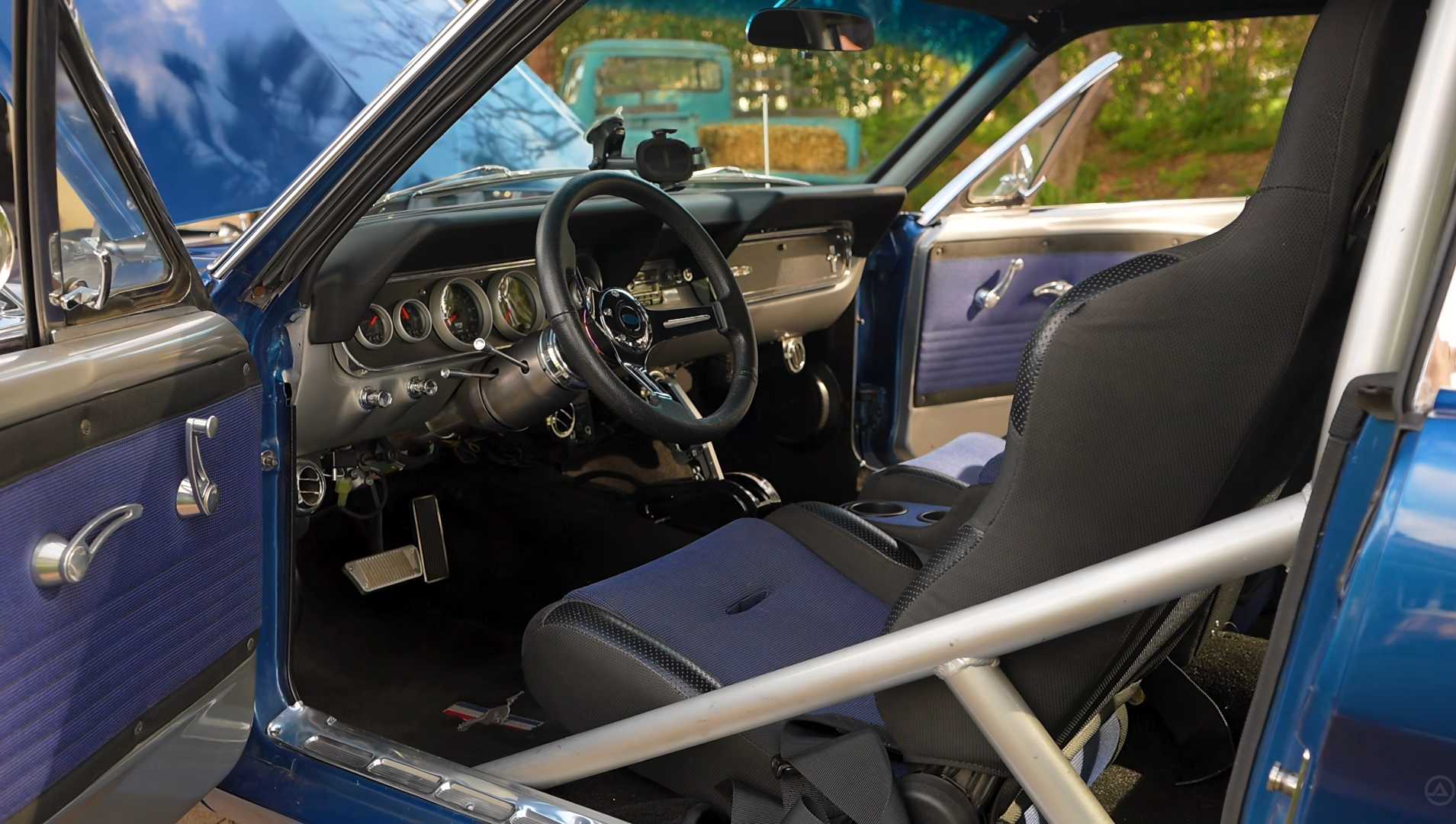

Interior: Classic Style with Smart Tech Integration
Inside, the Mustang keeps its vintage charm while incorporating modern functionality:
- Aftermarket gauges (multi-color configurable)
- Bluetooth-enabled stereo system
- Transmission control display
- Line lock system for burnouts
- Half roll cage integrated into chassis
Hidden behind the glovebox lies the brain of the operation:
- ECU for fuel injection system
- Transmission control unit
- App-based tuning interface

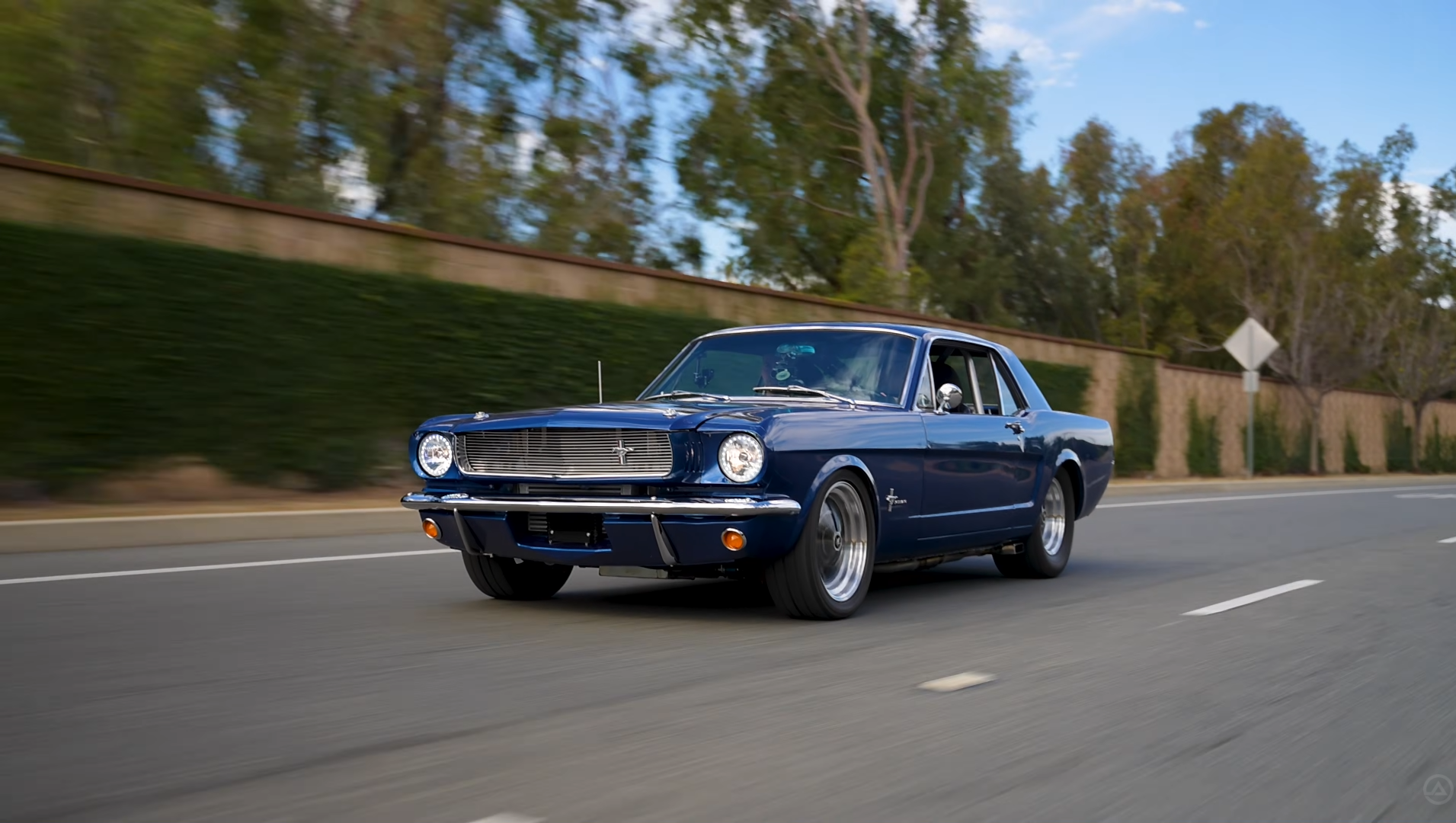

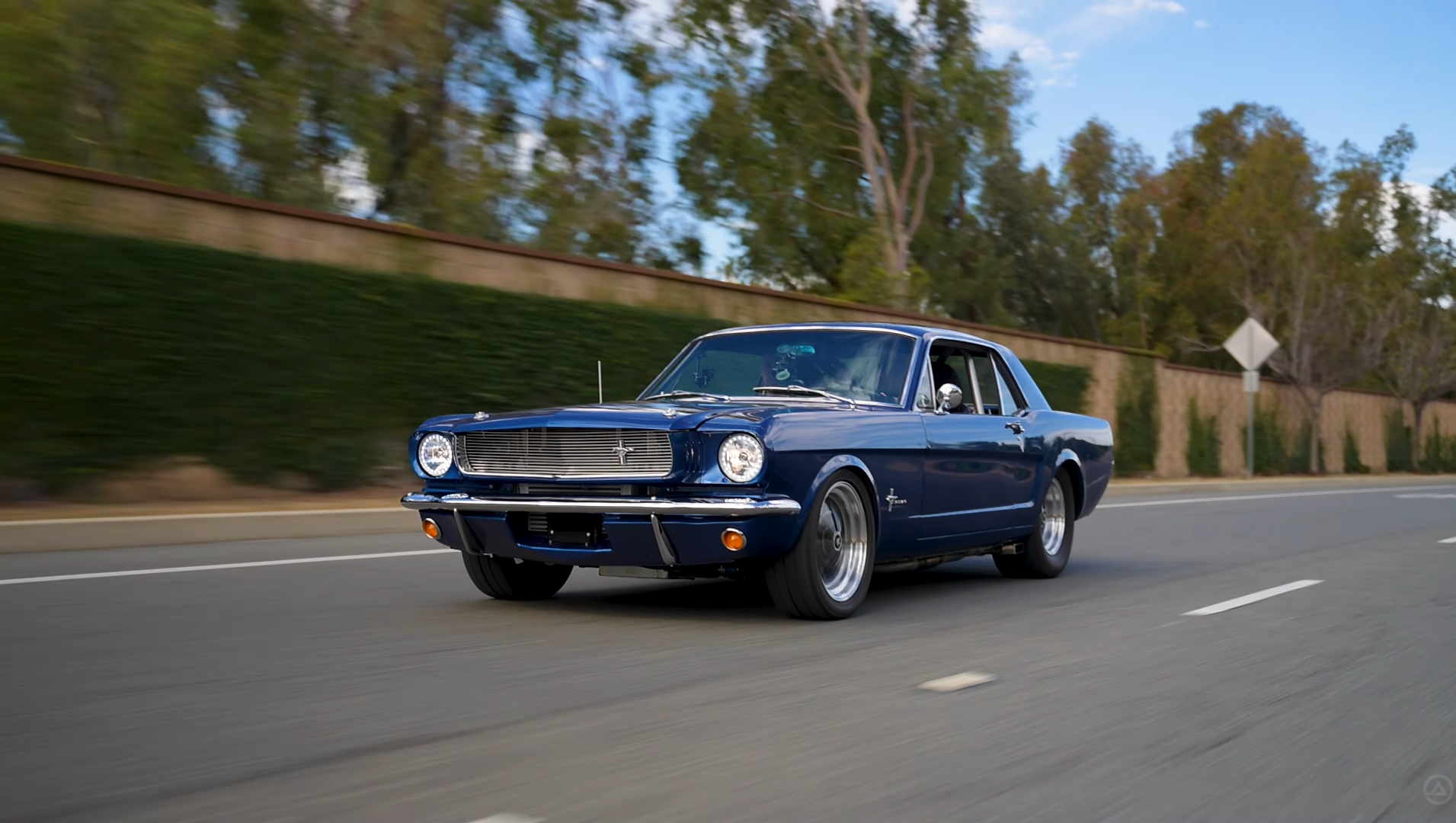

Driving Experience: “Fun Power” Done Right
Weighing approximately 3,400 lbs, this Mustang delivers a power-to-weight ratio that feels lively but manageable.
On the road:
- Smooth, predictable shifts
- Strong mid-range torque
- Comfortable cruising with overdrive
- Sharp throttle response under boost
This isn’t a wild, uncontrollable beast—it’s what enthusiasts call “usable performance.” The kind of power that excites without overwhelming.
The Verdict: A Perfectly Balanced Restomod
This 1966 Mustang Coupe is a masterclass in thoughtful modification. It avoids extremes and instead focuses on balance, usability, and driver engagement.
What Makes It Special:
- Retains classic structure and feel
- Integrates modern tech where it matters
- Delivers strong, reliable performance
- Built to be driven—not just displayed
In a world of overbuilt show cars and stripped drag machines, this Mustang stands out as something better: A true driver’s classic—refined, powerful, and deeply personal.
Source: Autotopia LA
