For 2016 the Shelby comes in a street ready and “R” version track ready package. Both packages only come with a TREMEC 3160s 6 speed manual transmission. The Shelby’s come with a MagnaRide Dampening System. This special feature continually adjusts your ride by passing an electric current through the metal particles in the hydraulic fluid in the shocks. This provides an ultra quick responsiveness to changing driving conditions. Each corner is adjusted independently up to 1000 times per second! The Shelby comes with an aggressive front splitter, vented fenders and hood to channel the air to where it is needed most to keep the Shelby cool at high speeds. Unlike the Corvette which shuts down after a couple of high speed laps, the Shelby keeps on running.
The power train includes a 3.73:1 ratio, TORSEN helical differential to handle the 5.2 liter’s power.
To stop the car requires Brembo 6 piston front and rear calipers.
The interior has a Leather and Alcantra wrapped flat bottom steering wheel. The instrument cluster is unique to the Shelby and has gray accents.

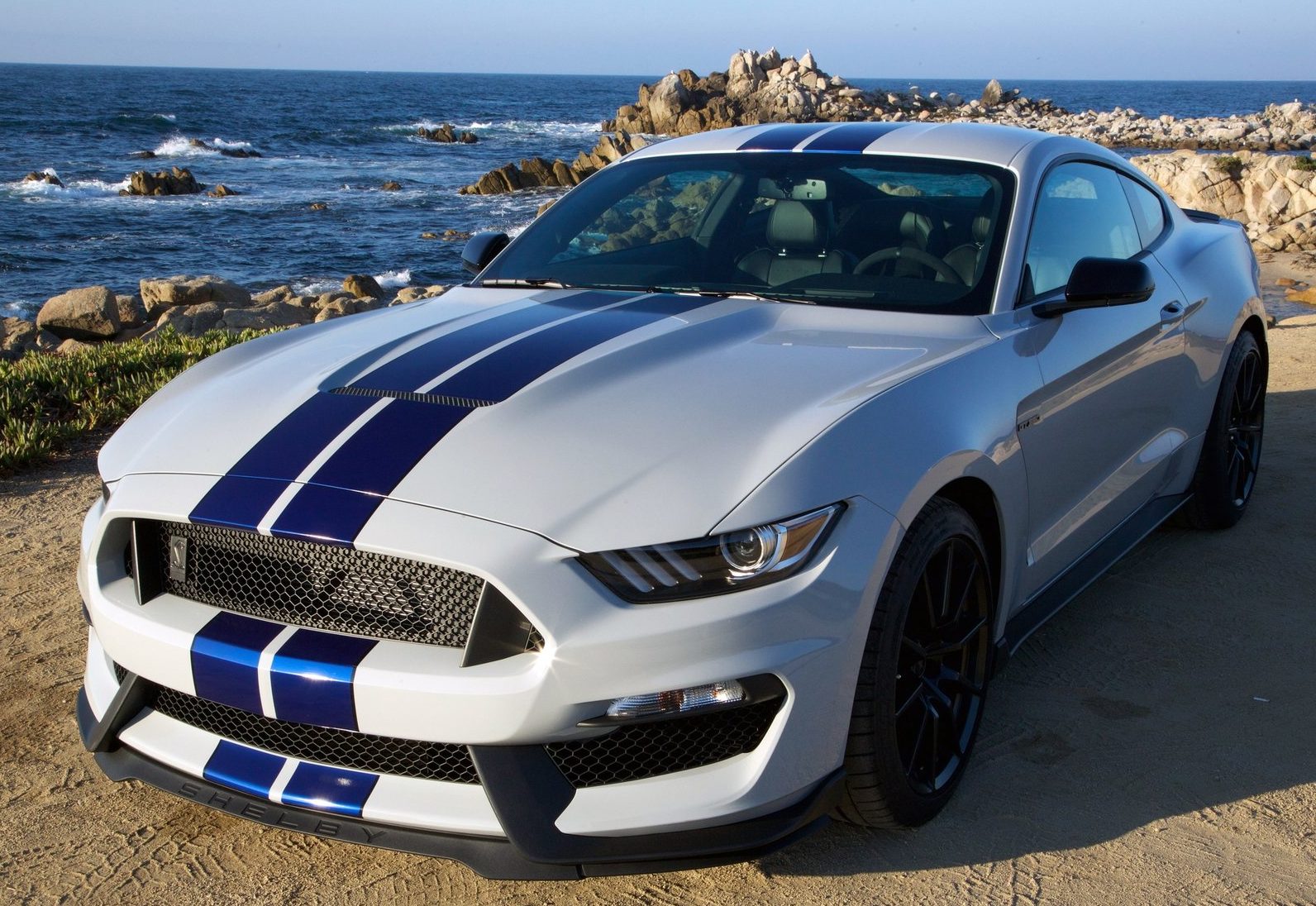

The exterior of the Shelby sports 19″x10.5 front wheels and 19″x11 black ebony painted aluminum rear wheels with 295/35ZR19 front and 305/35ZR19 rear tires. They are Michelin Pilot Super Sport Summer only tires. The hood is aluminum and has a center vent. Exhaust comes with dual exhaust and dual tips and active valves. Side mirrors are gloss black. Front grille is an injected molded carbon fiber composite grille for durability and strength.
The only equipment group offered in 2016 is the 920A or the R-package. This package is designed with the racing population in mind. It includes the MagnaRide dampening system, the integrated driver control system, heavy duty front springs, engine and oil and differential coolers, 19×11 front and 19×11.5 rear Ebony Black Carbon Fiber wheels, 305/30ZR19 front and 315/30ZR19 rear Michelin Pilot Sport Cup 2 summer only tires, unique chassis tuning, unique front splitter, strut tower brace, red accent stitching, carbon fiber rear wing, and wheel locks. Deleted in this package is the air conditioning, audio system, rear seat, rear view camera, tire inflator and sealant kit, floor mats and SYNC3.
Aside from the black painted roof, there are 3 available option packages.
Electronics Package – This package includes a 7 speaker audio system; Sync3 Enhanced voice recognition communications and entertainment system with an 8″ color LCD screen in the center of the stack, 2 USB ports, a voice activated navigation system with integrated SiriusXM traffic and travel link with a 5 year subscription, SiriusXM satellite radio with a 6 month trial subscription; dual zone electronic automatic temperature control, universal garage door opener, integrated turn signal indicators in the side view mirrors, floor mats, auxiliary gauges, and tire inflator and sealant kit.
Technology Package – This package includes the contents of the Electronics Package, plus it includes MagnaRide Dampening System, Integrated Driver Control, Heavy duty front springs, engine oil and transmission and differential coolers, raised rear spoiler, and aluminum strut tower brace (n/a with 920A or Technology package). In other words, it is the Electronics and Track Packages combined!
Track Package – Includes MagnaRide Dampening System, Integrated Driver Control, Heavy duty front springs, engine oil and transmission and differential coolers, raised rear spoiler, and aluminum strut tower brace (n/a with 920A or Technology package).

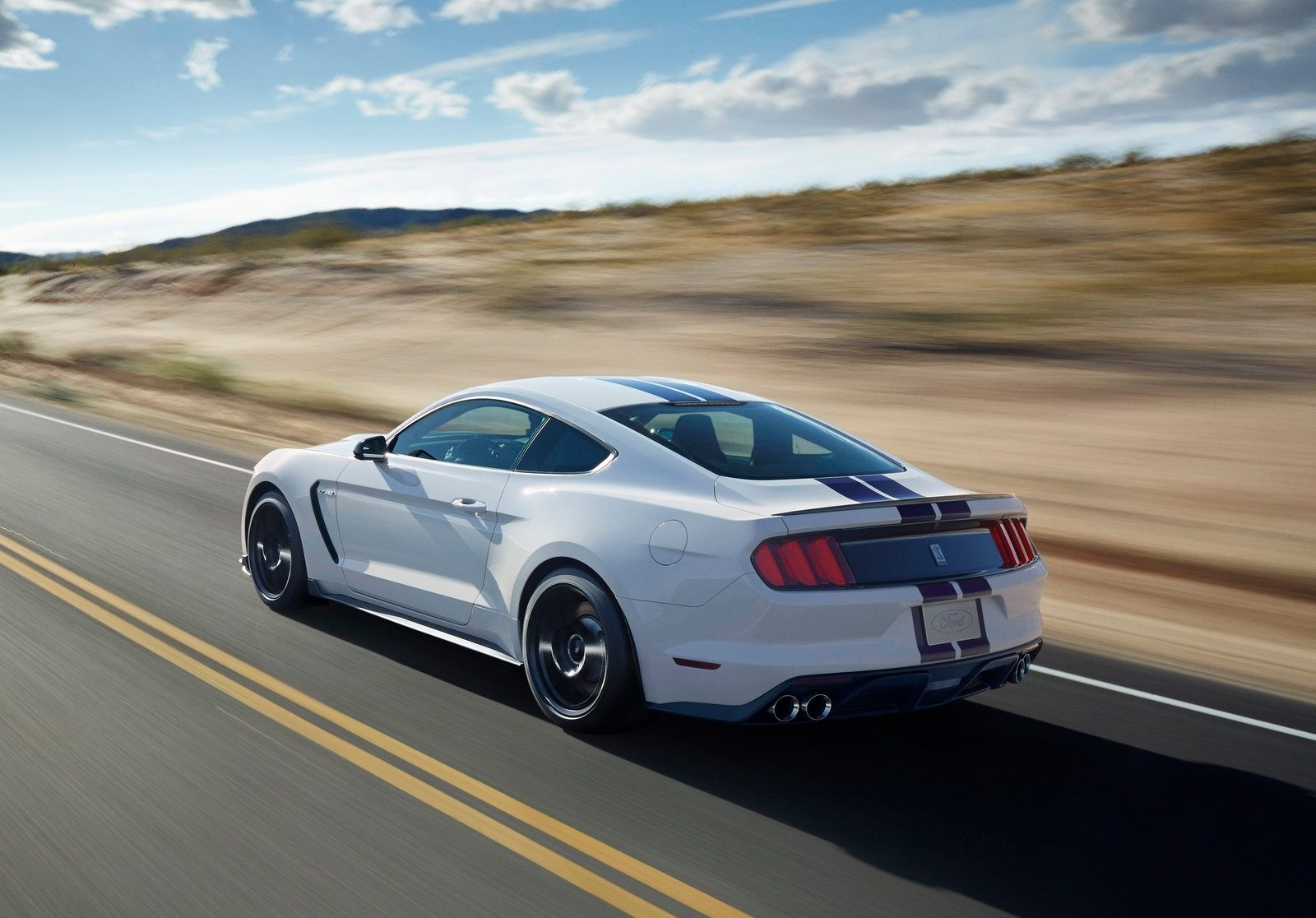

One of the most iconic performance Mustang nameplates of all time is returning, Ford confirmed today with the reveal of the all-new Shelby GT350 Mustang.

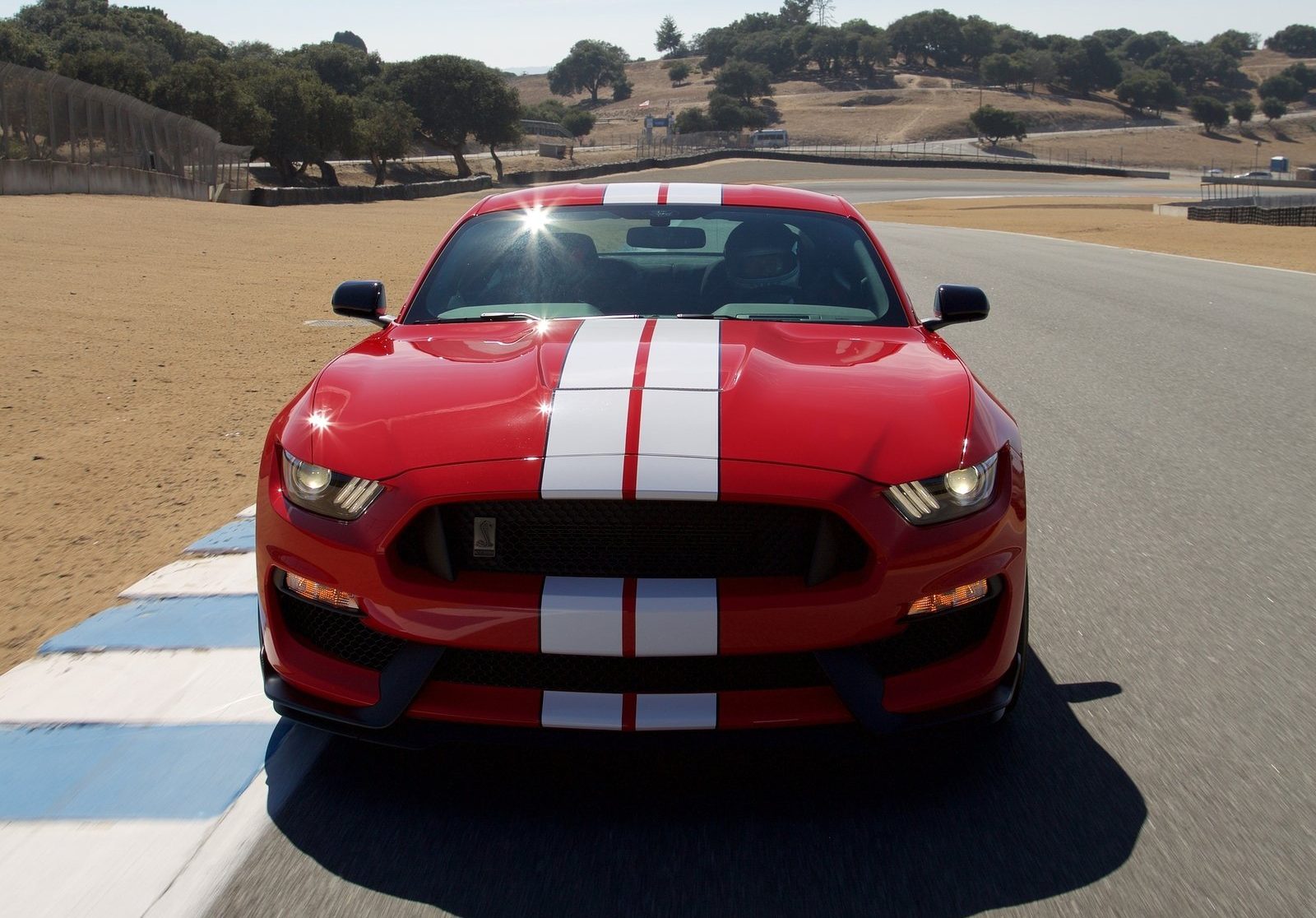

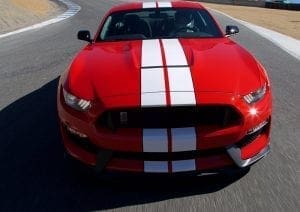

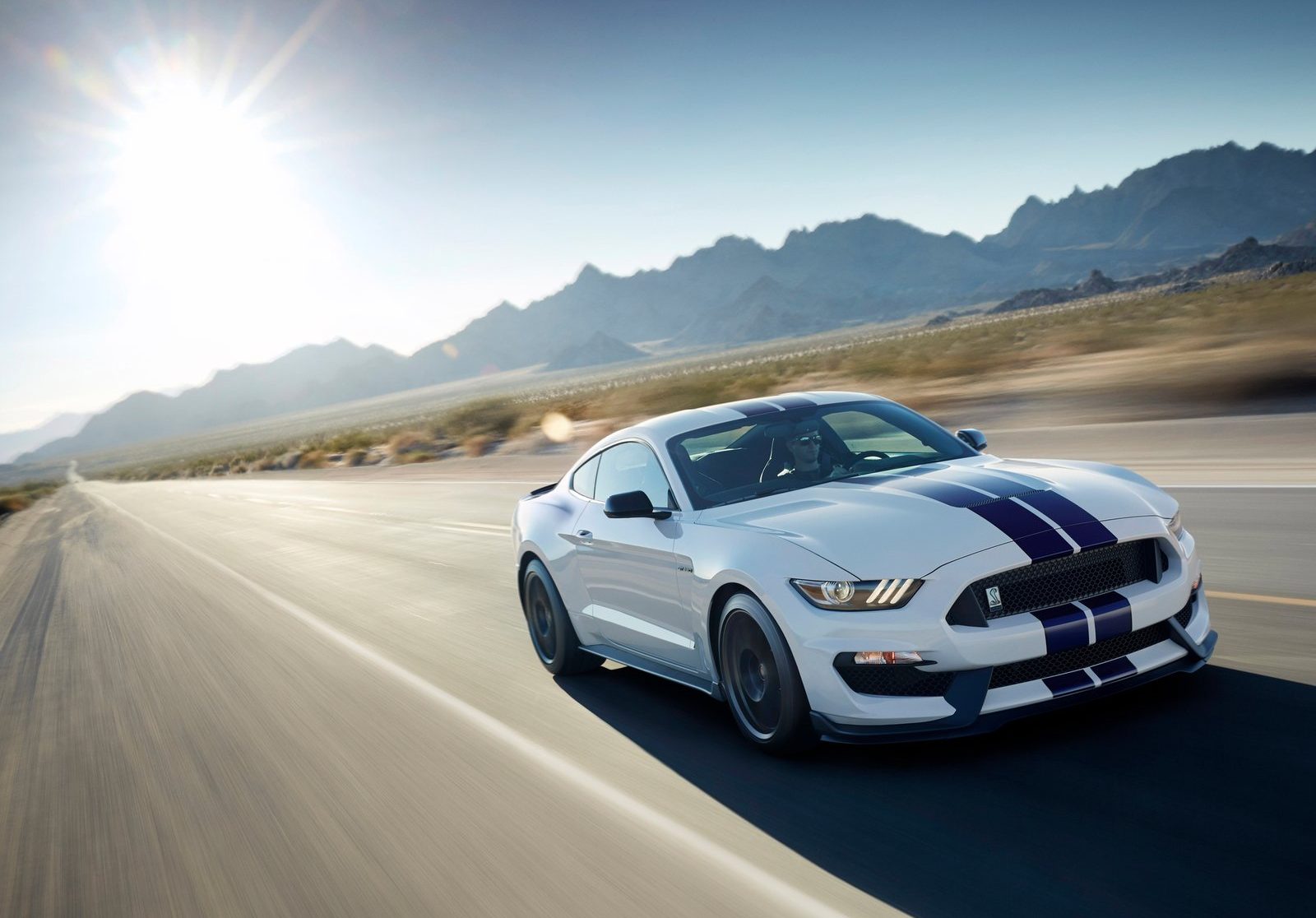

The original Shelby GT350 introduced in 1965 established Mustang’s performance credentials. The all-new Shelby GT350 Mustang, featuring the most powerful naturally aspirated Ford production engine ever, is a world-class performance vehicle, designed to tackle the planet’s most challenging roads – an all-day track car that’s also street legal.

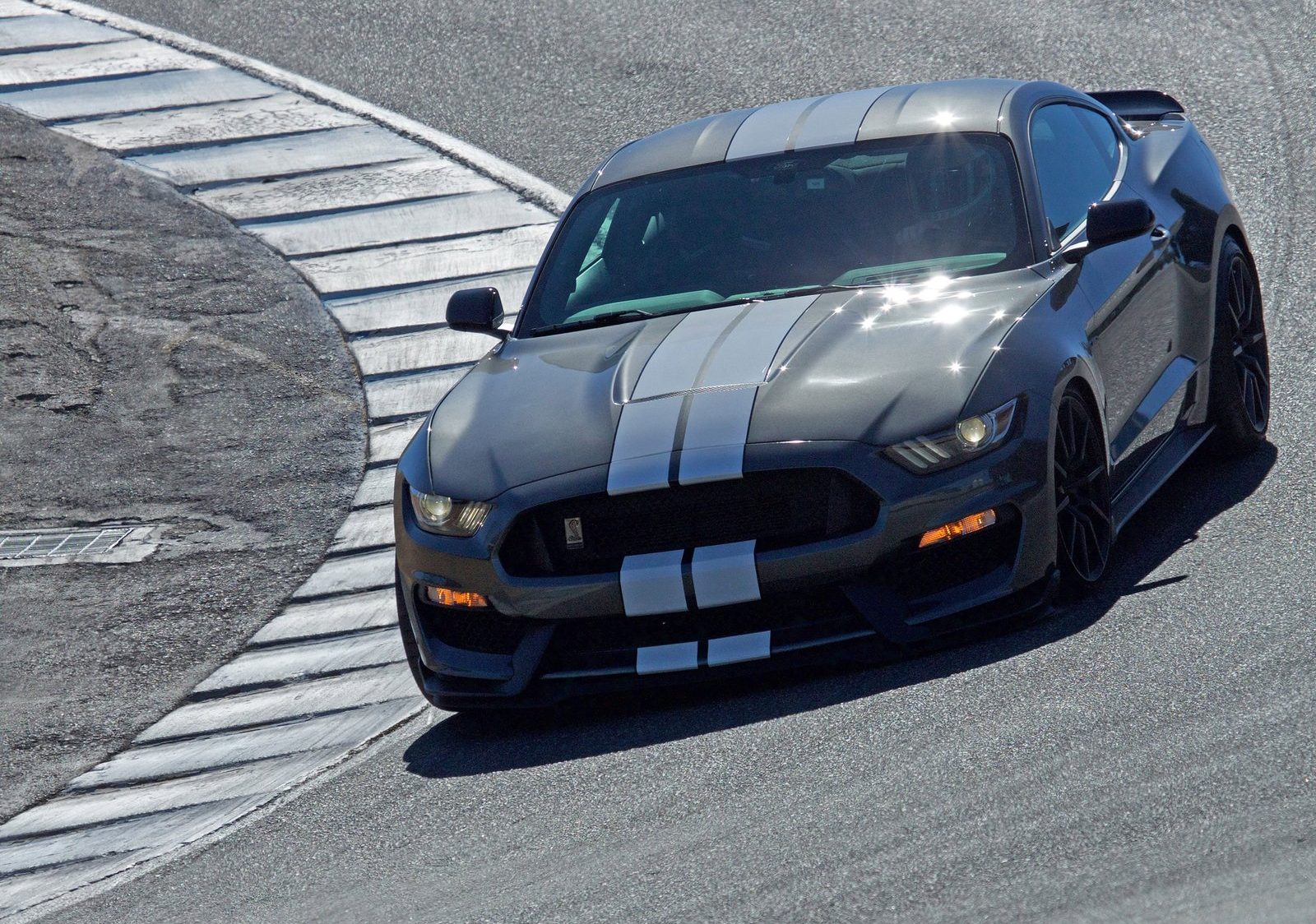

The new GT350 builds on Carroll Shelby’s original idea – transforming a great every-day car into a dominant road racer – by taking advantage of a dramatically improved sixth-generation Mustang to create a truly special driving experience. Driving enthusiasts behind the wheel of a Shelby GT350 can expect to be treated to the most balanced, nimble and exhilarating production Mustang yet.
Ford engineers took an innovative approach with GT350. Rather than develop individual systems to perform well independently, every component and shape is optimized to work in concert; balance is the key. While paying rigorous attention to detail, the team pushed the envelope with cutting-edge materials and technologies.
“When we started working on this car, we wanted to build the best possible Mustang for the places we most love to drive – challenging back roads with a variety of corners and elevation changes – and the track on weekends,” said Raj Nair, Ford group vice president, Global Product Development. “Every change we made to this car was driven by the functional requirements of a powerful, responsive powerplant – nimble, precise handling and massive stopping power.”
Early in development of the GT350, it was decided a high-revving, naturally aspirated V8 engine would best suit a track-focused Mustang.
“The final product is essentially an all-new powerplant unique to GT350 – and one that takes true advantage of the new chassis dynamics of the Mustang platform,” said Jamal Hameedi, chief engineer, Ford Global Performance Vehicles.
The new 5.2-liter engine is the first-ever production V8 from Ford with a flat-plane crankshaft, an architecture typically found only in racing applications or exotic European sports cars. Unlike a traditional V8, where the connecting rods are attached to the crankshaft at 90-degree intervals, this design evenly spaces all crank pins at 180-degree intervals.
The 180-degree, flat-plane layout permits a cylinder firing order that alternates between cylinder banks, reducing the overlap of exhaust pressure pulses. When combined with cylinder-head and valvetrain advancements, this permits better cylinder breathing, further extending the performance envelope of the V8.
The result is the most powerful naturally aspirated production Ford engine ever, at more than 500 horsepower, with a torque peak above 400 lb.-ft. The track capability is enhanced by the output characteristics of the engine – the 5.2-liter V8 features an exceptionally broad torque curve. Combined with its high-revving ability, the flat-plane 5.2-liter V8 gives drivers an enormous amount of performance and flexibility within each gear of the lightweight six-speed manual transmission. A standard Ford-tuned Torsen limited-slip differential optimizes cornering grip and straight-line traction.

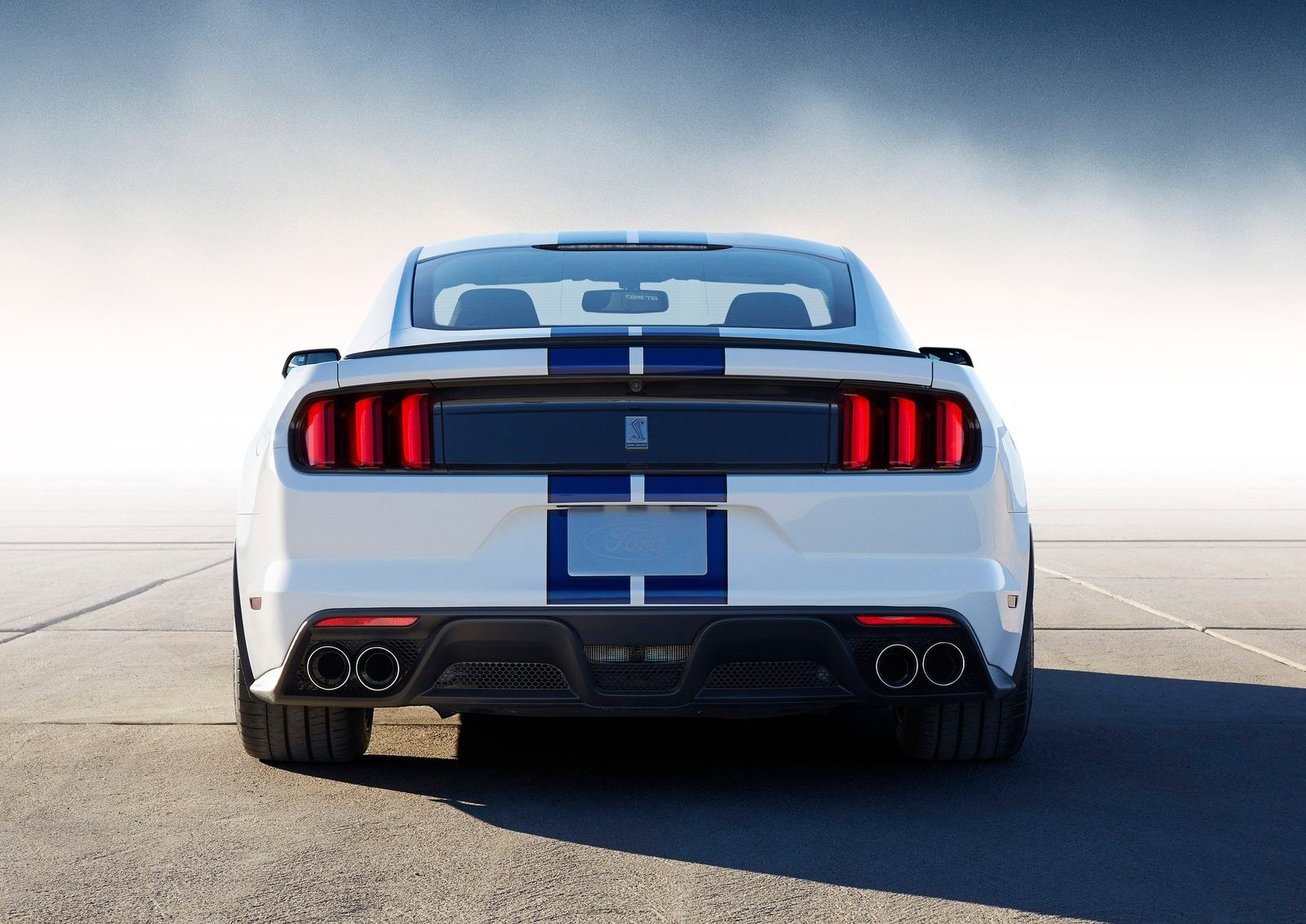

“Make no mistake, this is an American interpretation of a flat-plane crankshaft V8, and the 5.2-liter produces a distinctive, throaty howl from its four exhaust tips,” said Hameedi.
The new Mustang platform is the strongest in the history of the brand, with torsional stiffness increased 28 percent over the previous model. That stiff structure ensures the suspension geometry remains consistent, even under hard driving on back roads and tracks. Front stiffness is further improved on GT350 with a cutting-edge injection-molded carbon fiber composite grille opening and optional lightweight tower-to-tower brace. The front track has been increased while spring rates and bushings have been recalibrated all around, with ride height reduced compared to Mustang GT.
For optimum handling, the wheels need to respond quickly to the contours of the road and driver input. Reducing unsprung mass is key to improving that response, but a balance must be struck between taking mass out of a suspension and delivering truly capable braking performance.
Due to the significant speeds the car can develop, GT350 features the most track-credible brake system ever offered on a Ford vehicle in terms of absolute stopping power, fade resistance and brake pedal feel. The brakes are two-piece cross-drilled iron discs mounted to aluminum hats. At the front are massive 394-millimeter rotors clamped by Brembo six-piston fixed calipers with integrated caliper bridges, while 380-millimeter rotors at the rear utilize four-piston calipers.

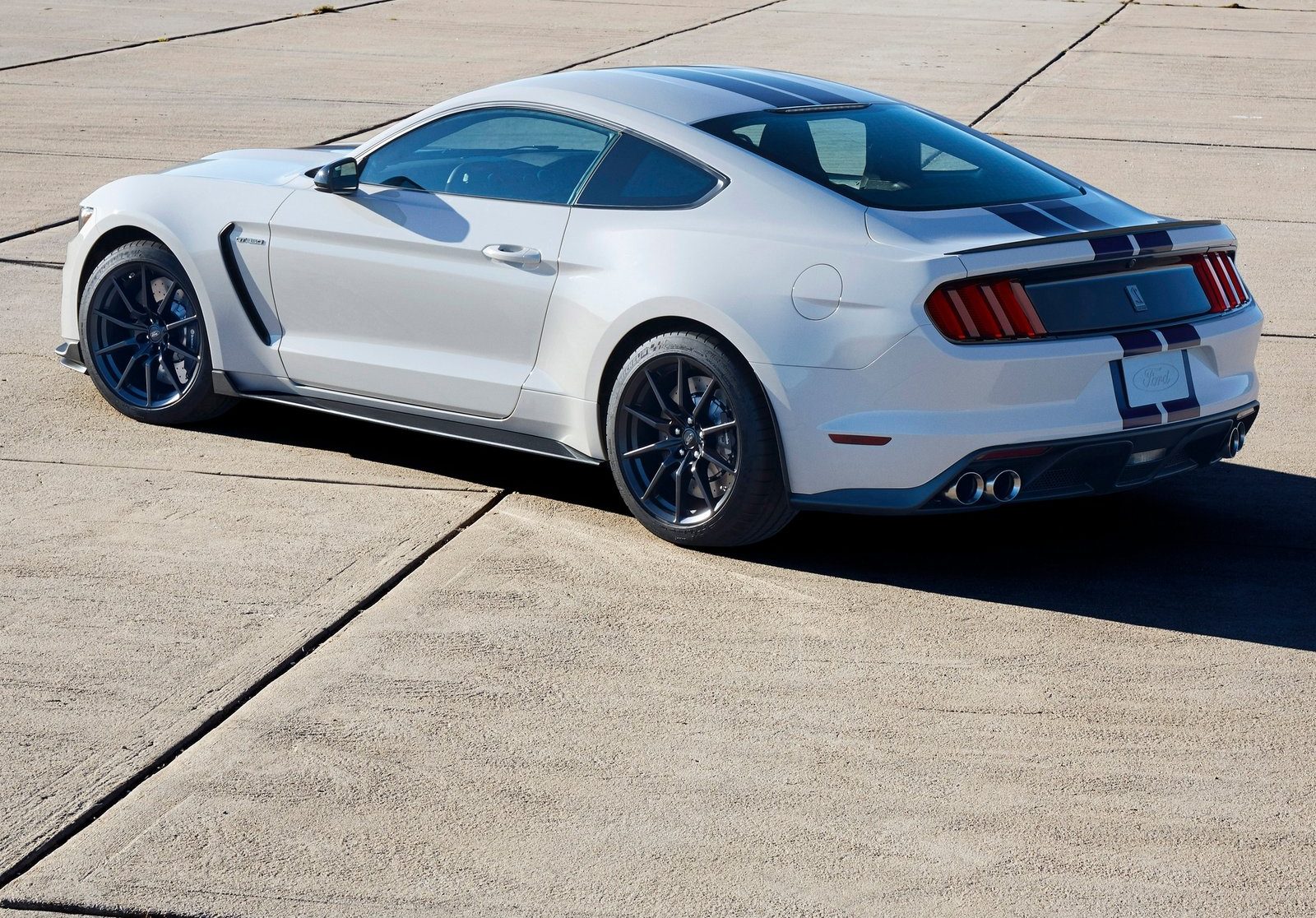

GT350 makes use of extra-stiff 19-inch aluminum-alloy wheels – 10.5 inches wide in front, 11.0 inches in the rear – clad in state-of-the-art Michelin Pilot Super Sport tires with GT350-specific sidewall construction, tread face and compound. The custom tires are designed to deliver maximum grip on the road or at the track.
Ultra-quick responsiveness to changing conditions is provided by the first-ever Ford application of continuously controlled MagneRide dampers. The dampers are filled with a hydraulic fluid impregnated with iron particles; when an electric current is passed through the fluid, a near-instant adjustment of the suspension performance can be made. With wheel position sensors monitoring motion thousands of times per second combined with other vehicle data, changes can be made to each corner independently every 10 milliseconds for optimum handling performance. This is a system designed not just to make the car handle better but to instill greater confidence in even the best driver.
Obsession To Detail
“Everything we changed on GT350 is purely functional-driven design, with the goal of improving the overall performance of the car,” said Chris Svensson, Ford design director, The Americas. “We optimized the aero shape of the car, and then fine-tuned what was left to increase downforce and cooling airflow.” All bodywork from the windshield forward is unique to this high-performance model and up to two inches lower than Mustang GT.

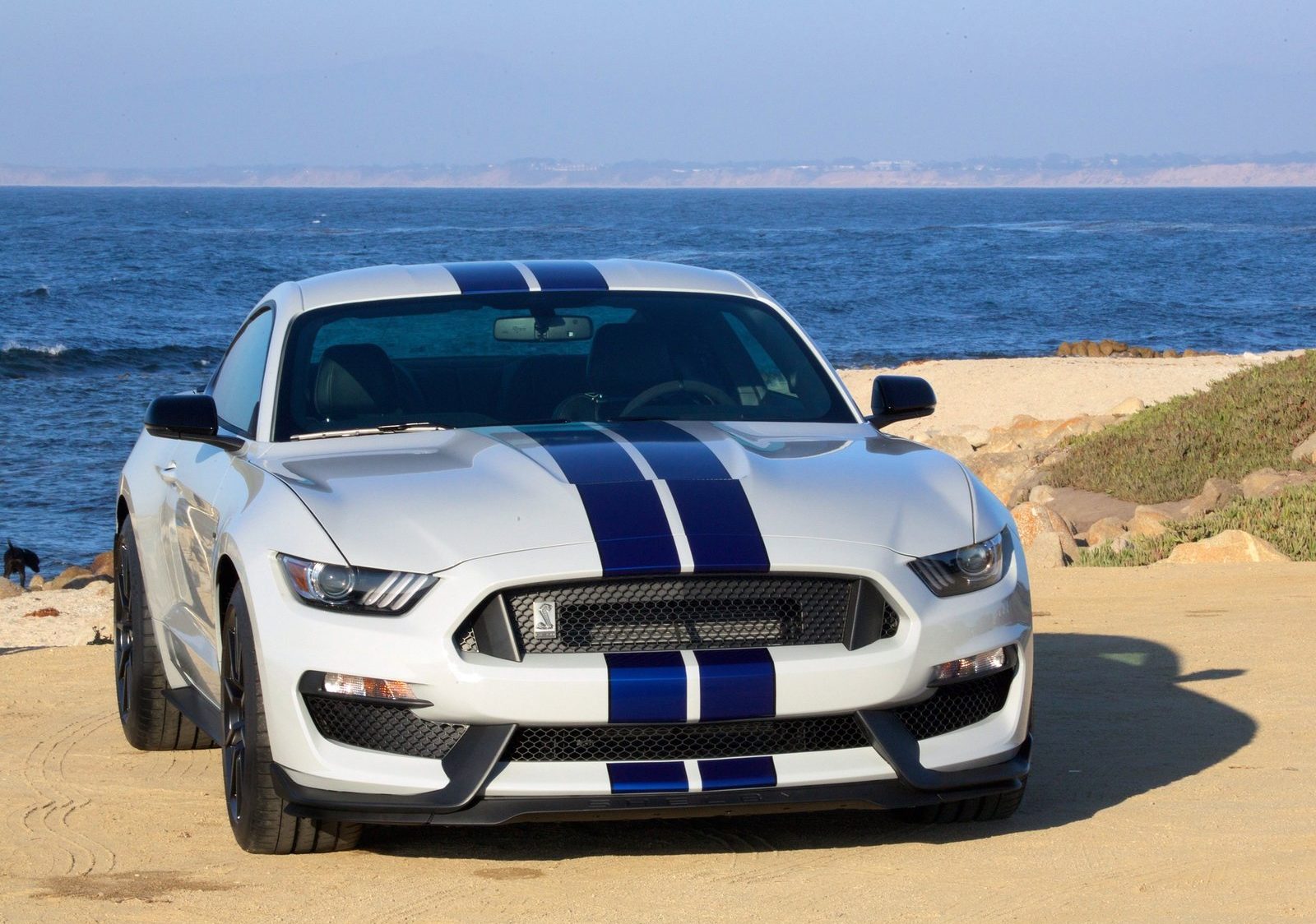

The new aluminum hood has been lowered and sloped, compared to the base Mustang, tightly wrapped around the engine for the smallest possible aerodynamic signature. Front and rear aero elements have been balanced to work together on the track. The fascia has been resculpted to provide the aggressive lower front splitter with maximum pressure and a ducted belly pan delivers significant downforce. The hood outlet acts as a heat extractor while also reducing underhood lift at high speed. At the rear, much of the engineering was focused on creating an aggressive functional diffuser doing double duty to increase downforce and provide cooling air to the optional differential cooler, and a subtle lip spoiler across the trailing edge of the decklid increases downforce without adding excess drag.
The athletic stance of the all-new Mustang is further accentuated with recontoured aluminum front fenders to accommodate the wider front track and wider wheel arches. Front fender vents work with vented inner fenders to draw out turbulent air in the wheel wells and smoothly direct it down the side of the car. The forward-angled grille is designed with individual openings to draw air through the radiator, high-pressure engine air intake, cooling ducts for the front brakes and, optional with the Track Pack, an engine oil cooler and a transmission cooler.
Focus-Driven Cockpit Changes

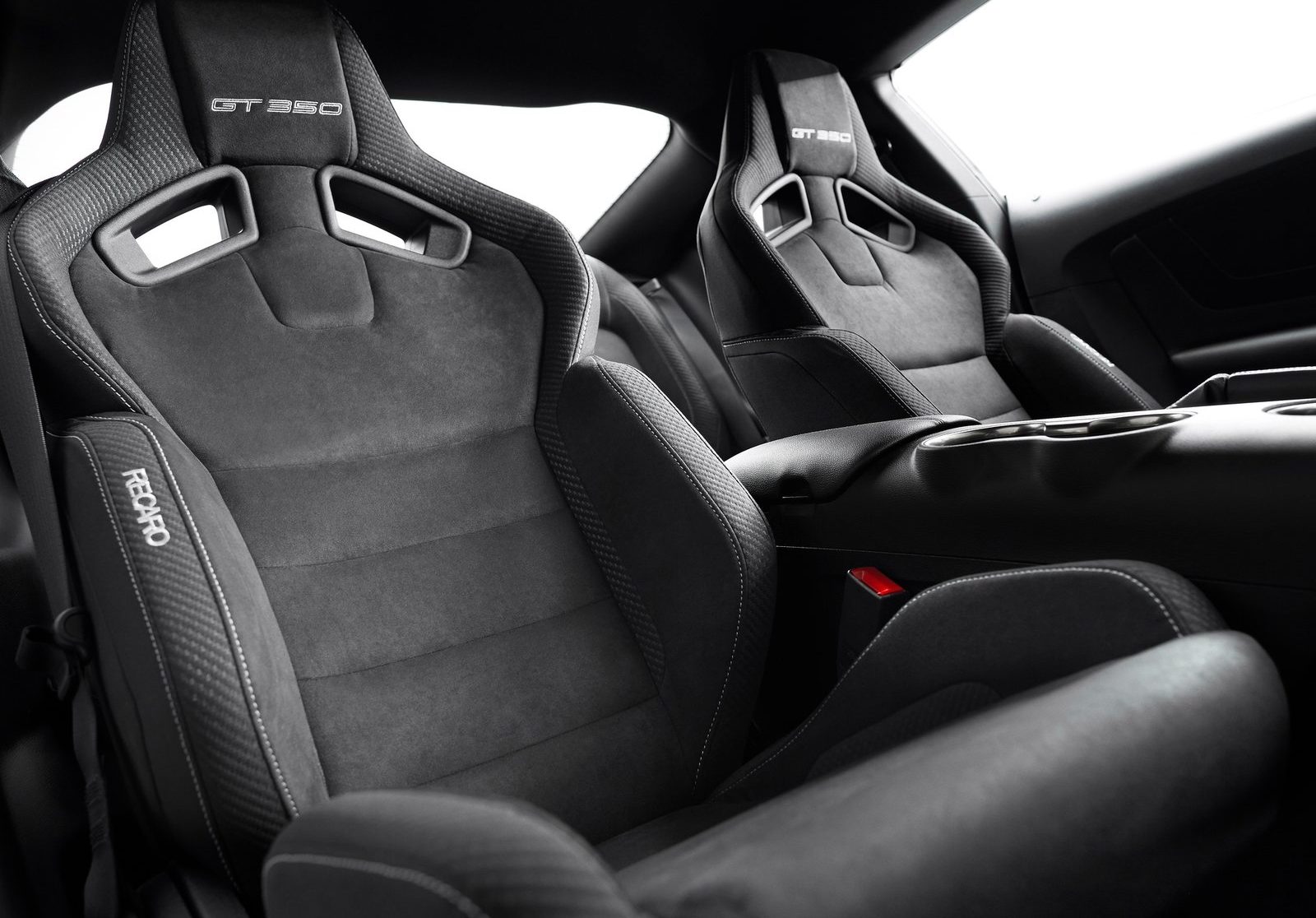

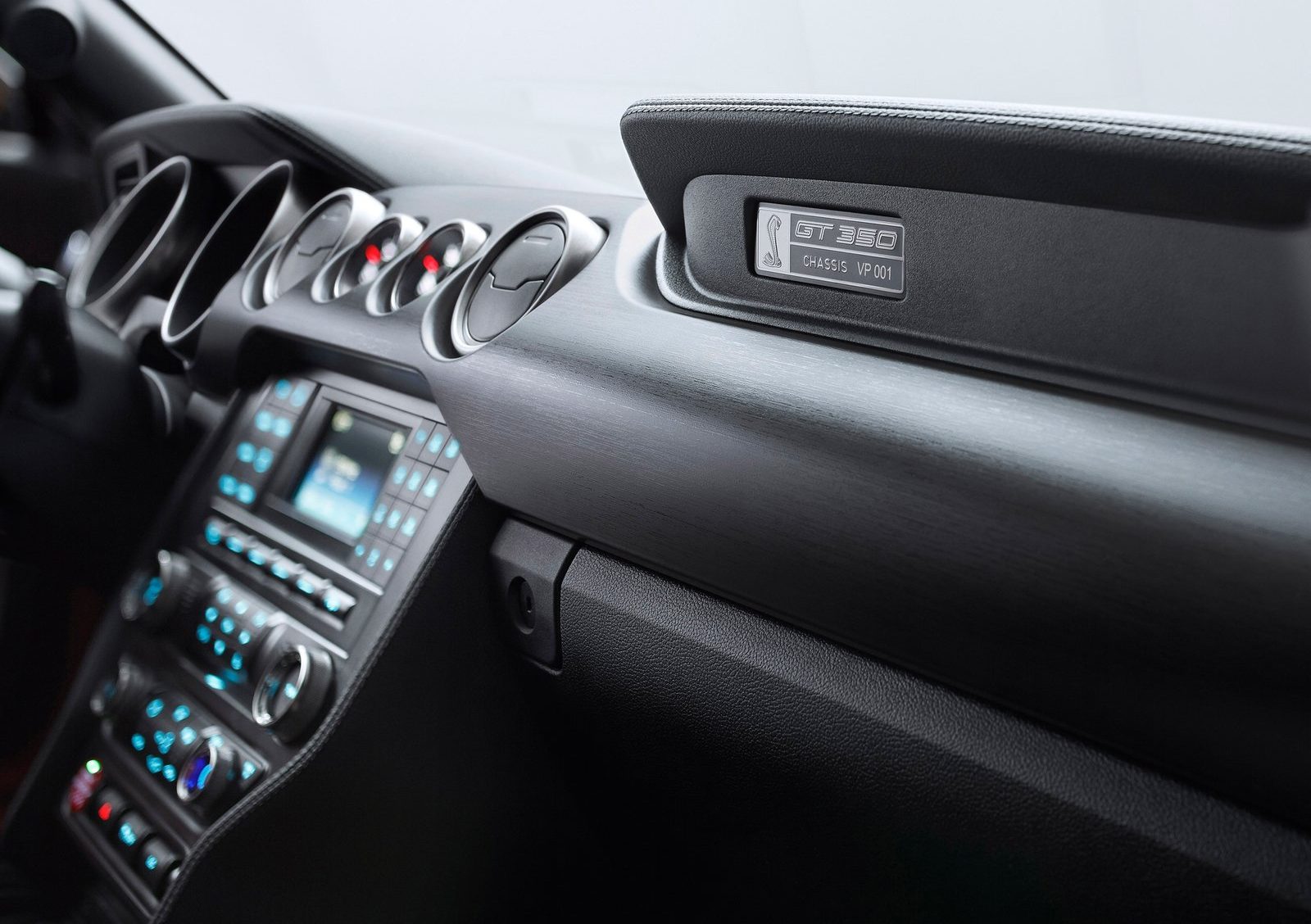

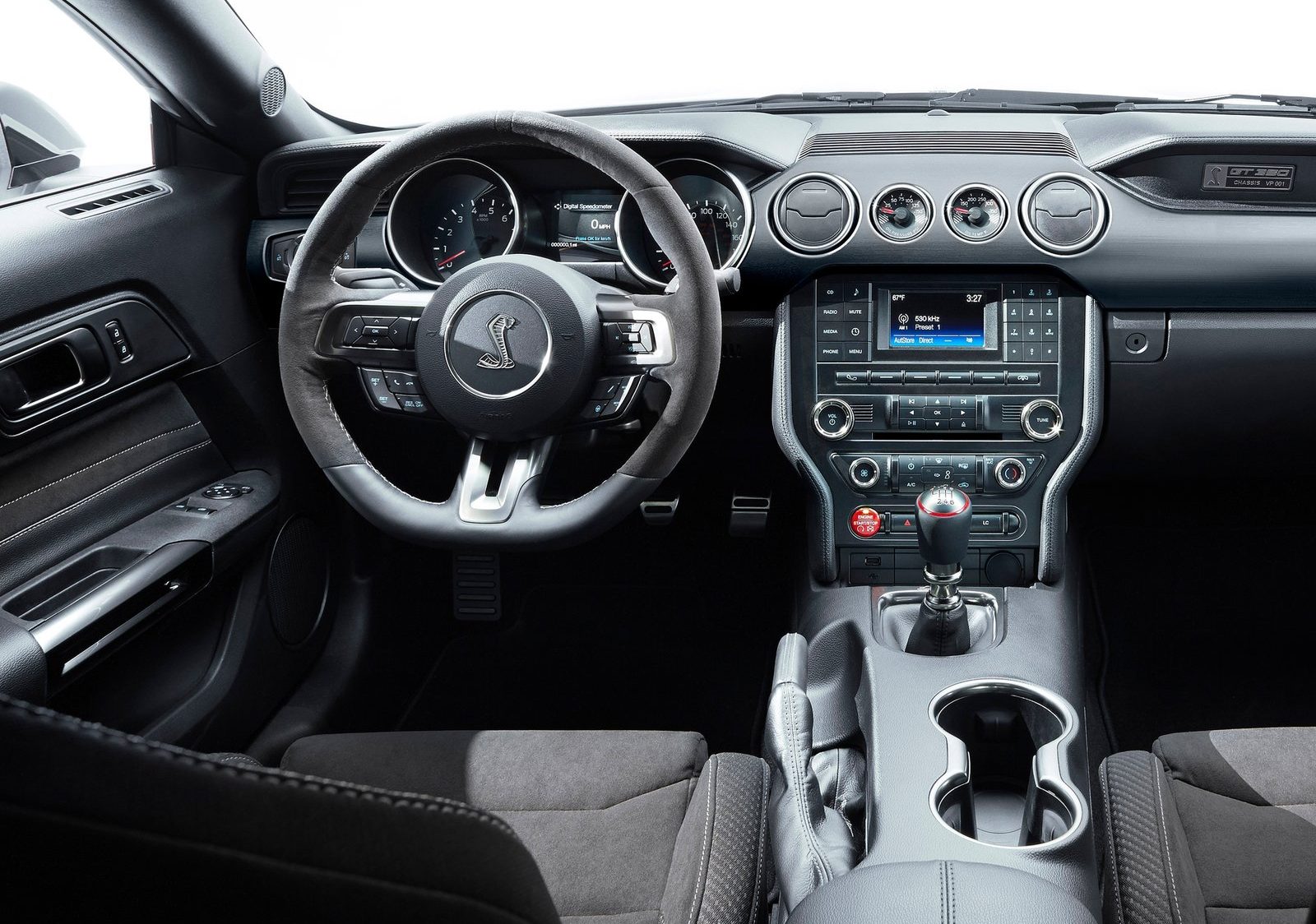

Like everything else about GT350, the interior has been optimized for driving, beginning with the specially designed Recaro sport seats with a unique cloth. Hundreds of hours and many prototypes went into a seat that is both comfortable in daily driving and capable on the track. A flat-bottom steering wheel makes it easier for the driver to get in and out, and is more ergonomic on the racetrack. Gauges are upgraded to reflect the enormous performance capability of the car. Chrome and bright finishes have been reduced or eliminated to prevent sun glare that may distract the driver.
The advanced technology inherent to Mustang has been deployed for duty in the Shelby GT350. An all-new integrated driver control system allows selection of five unique modes that tailor ABS, stability control, traction control, steering effort, throttle mapping, MagneRide tuning and exhaust settings, depending on driver preference, to achieve maximum performance. Drivers are invited to test them all.
Drivers interested in comfort, convenience and entertainment upgrades may select the Tech Pack, which includes power, leather-trimmed seats; Shaker Audio; 8-inch MyFord Touch® LCD touch screen; and dual zone electronic temperature control, to name a few features.
“We took the best Ford Mustang yet and massaged every aspect of the car that affects the performance driving experience,” said Hameedi. “We tested endlessly on the most challenging roads and tracks in the world, and we believe serious drivers will love the Shelby GT350 Mustang.”
