1968 Mustang Brakes Information & Drawings

Technical drawings of the brake system for the 1968 Mustang. We have included drawings for the 1968 Mustang brake booster, brake cylinders, drum brake system and master cylinder.

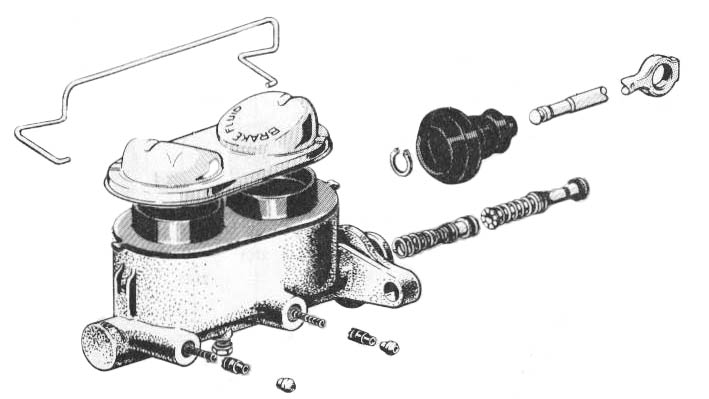

Master Cylinder

1968 Mustang Master Cylinder

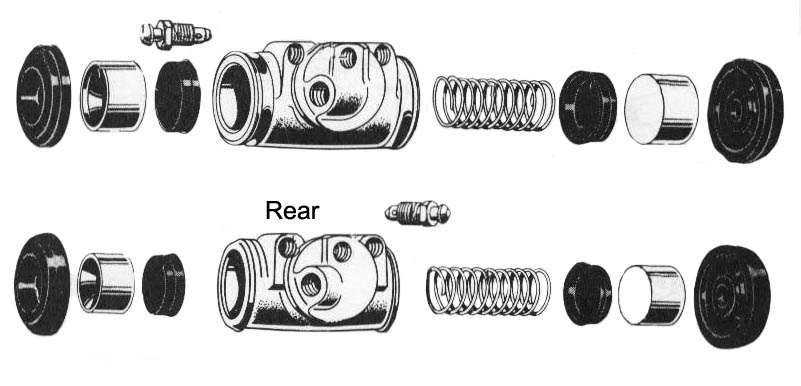

Wheel cylinder

1968 Mustang Brake Wheel Cylinder

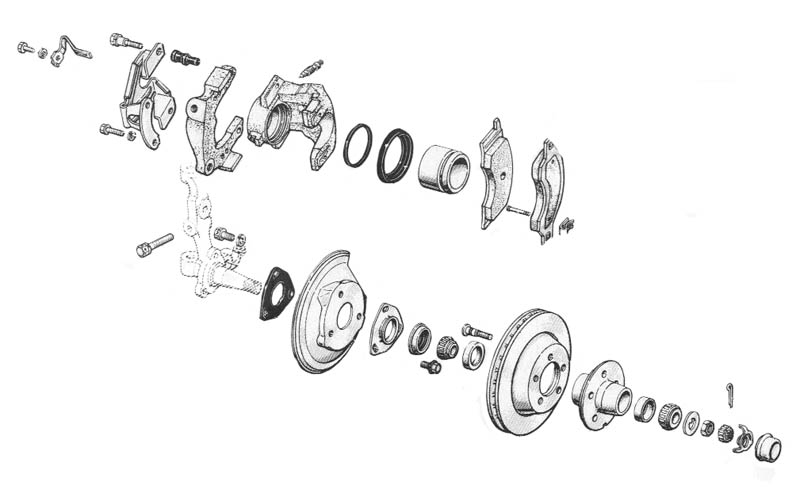

Brakes front Disc

1968 Mustang Brake Front Disk

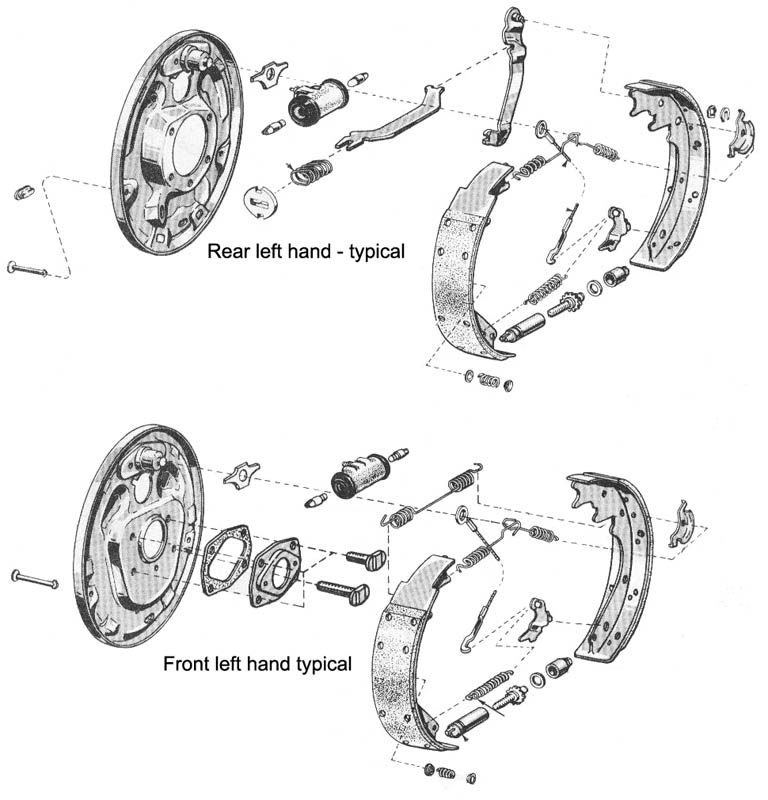

Drum Brakes Front and Rear

1968 Mustang Drum Brake Front & Rear
