2010 Ford Mustang Shelby GT500

5.4L V8 now up to 540hp

Like the rest of the Mustang lineup, the GT500 got a redesigned body for the 2010 model year. The hood, nose and grille were all made more aggressive and it is easily one of the hottest looking Mustangs over the last 20 years.

Powertrain lessons learned from the 2008-2009 GT500KR filtered their way into the 2010 GT500. The Shelby still got the 5.4 litre supercharged V8 engine but now putting out 540 horsepower and 510 lb-ft torque by using a cold air induction system. Mated to a six speed transmission a 250 mm twin disc clutch and a 3.55 rear gear ratio limited slip rear end and running wide Goodyear F1 Supercar 285/35ZR19 sticky tires on the rear, the car is as big a thrill as you can get! As usual with most Cobras, the engine is hand built and signed by the artisans who performed the task. I have only had the chance to sit in two 2010 Shelby cars, one car at a dealer and one red Shelby in a neighboring town (see the pictures). When the engine starts, it will vibrate your chest as you listen to the power of the engine.

The transmission is a Tremec TR6060 with a.74:1 fith geaar and a .50:1 sixth gear which allows the snake to get about 22 mpg on the highway. SVT suspension upgrades, including stiffer springs, served to improve ride and handling both on the road and at the track.

While sitting in the car I noticed the interior was spacious and almost perfectly laid out for someone my size (6′). The seats were very comfortable and looked impressive. Vertical twin racing stripes run up the length and to the shoulder area, right into a coiled snake. The shifter throw was smooth and short and the clutch had a positive feel to it while not being too stiff and hard to press or hold. When you first start the car, a Shelby Snake appears on the center display screen. It’s impressive. The engine was inserted into the chassis with a shoe horn. The car fits around the engine like tight jeans fit the curves of a woman.

The gearshift resembles a billiard ball, and for good reason! It was outsourced to a billiard ball company to manufacture them. Notice the one piece functional heat extractor inserted in the front of the hood. This is needed to remove excessive heat from the engine compartment.

Exterior colors for the Shelby were Brilliant Silver Metallic, Sterling Gray Metallic, Kona Blue Metallic, Grabber Blue, Torch Red, Performance White and Black. Interior colors are Charcoal black with Silver stripes, Charcoal Black with Oxford White stripes, Charcoal Black with Satin Black stripes, Charcoal Black with Grabber Blue stripes and Charcoal Black with Torch Red stripes.

There are two styles of wheels available on the GT500, the 18 inch bright machined wheels on the convertible and the 19 inch painted aluminum on the GT-500 coupe.

Pricing for the coupe was $46,325 and $51,225 for the convertible.

Exterior

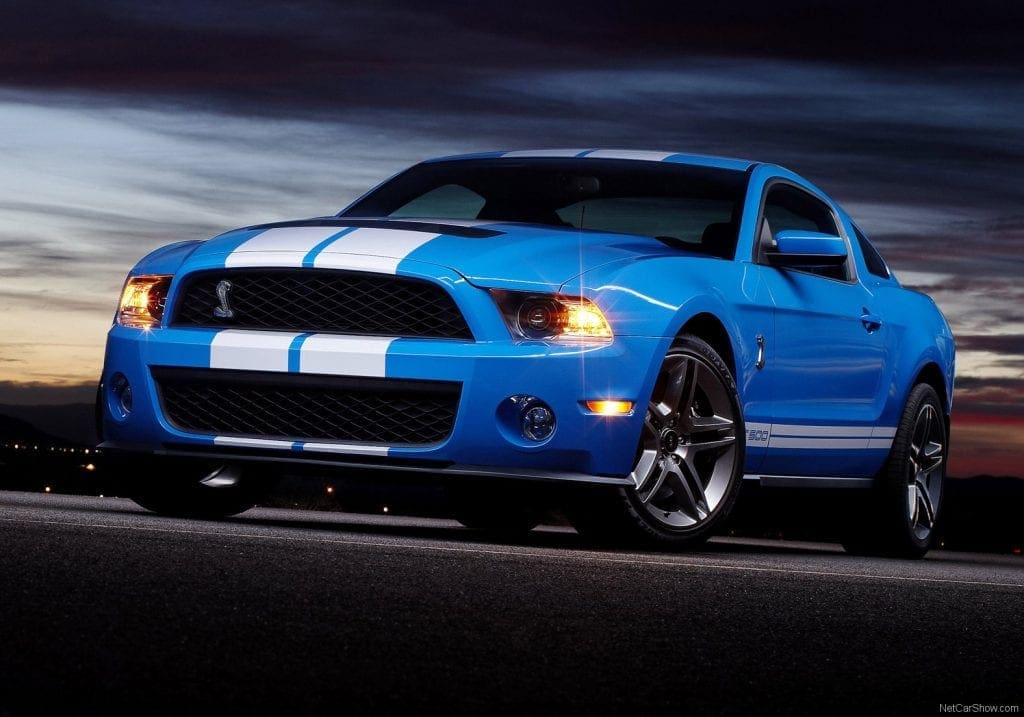

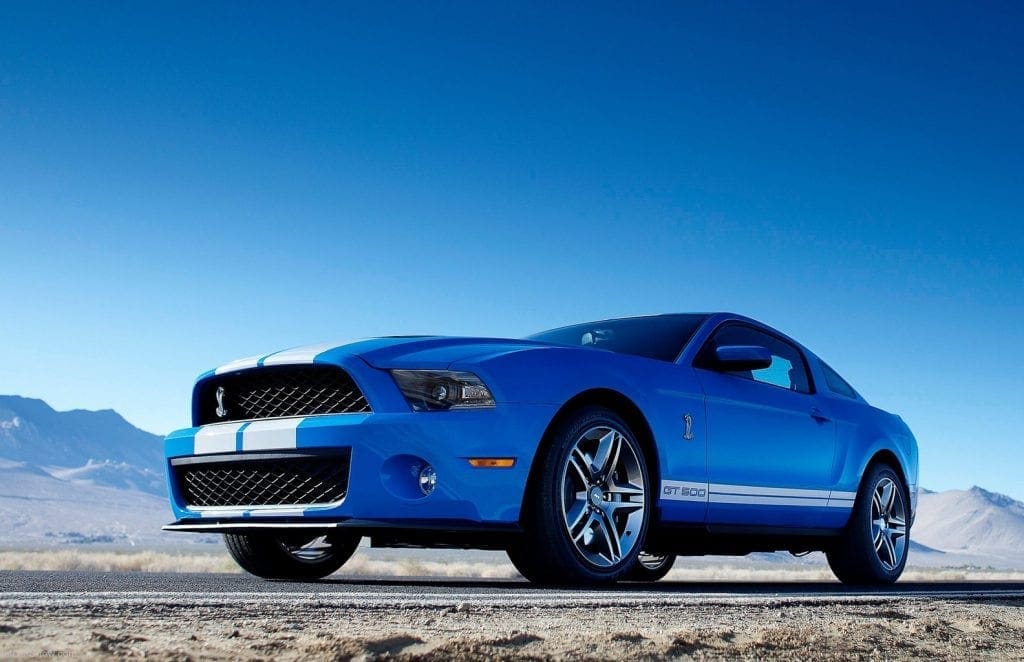

A meaner, reskinned snake ready to take to the streets.

The 2010 Shelby GT500 is the most-robust design and most-distinctive model of the new 2010 Mustang lineup. “The design we chose was a ‘flush’ hood where the fascia defines the entire front of the vehicle,” Hameedi said. “That’s very hard to execute from an engineering standpoint, but it really sets the Shelby off as very, very different from the base Mustang.”

“This epitomizes the ultimate Mustang,” added George Saridakis, Exterior Design manager of the Mustang and Shelby GT500. “It’s all about power and expressing power.”

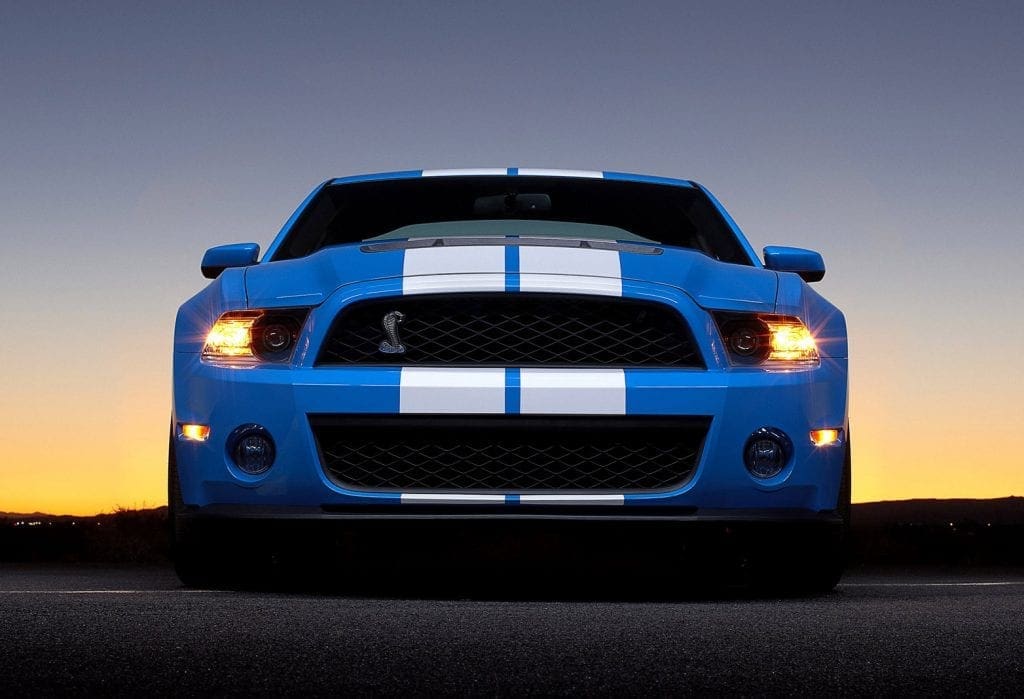

Saridakis said his team took a cue from the Shelby AC Cobra 427 with respect to the front grilles, which are gaping and appear ready to swallow the road.

Another obvious difference for the Shelby is the addition of racing stripes, which also will now be available on the convertible. “Racing stripes made their mark on 1960s-era Ford performance vehicles,” Hameedi notes. “That’s something we feel is a key part of the Shelby performance DNA – maybe more so than some of our competition.”

Rounding out the Shelby’s exterior modifications are the unique signature coiled Cobra badges on the front grille and front fenders, a more aggressive front splitter and lower-drag rear spoiler, which added to improved aerodynamic features, round out the exterior modifications. “We wanted the spoiler raked back aggressively to minimize drag, but we also have an integrated Gurney Flap that provides the downforce,” Saridakis said.

Interior

What’s inside counts with the 2010 Shelby GT500.

The base 2010 Mustang received a powerful new interior design. For the GT500, the interior design team members challenged themselves to raise the bar even higher to create the ultimate Shelby Mustang interior.

Using genuine materials such as real leather in all seats, real aluminum on the instrument panel and Alcantara inserts on the seats and steering wheel gave the appearance a precisely crafted, jewel-like yet functional feel. “You’ll definitely know you’re in a Shelby,” said Douglas Gaffka, Chief Designer, Shelby GT500.

The genuine aluminum finish panels have a unique-to-GT500 three-dimensional dimpled texture pattern inspired by racing clutch plates, braided hoses and cross-drilled racing brake rotors. The pattern has been painstakingly tuned to compensate for the compound curvature of the instrument panels. In addition, the “GT500” logo has been discretely engraved into the aluminum in front of the passenger as a nod to classic Shelby Mustangs of the 1960s.

This unique aluminum finish panel is fully encapsulated by an exquisite soft seamless TPO (Thermoplastic Olefin) instrument panel with a shape that resonates with Mustang’s powerful heritage. The center stack flows into the console and features a sub-flush shifter trim ring, flush cup holder door and lockable console stowage featuring the word “SHELBY” engraved in its Satin Liquid Chrome release button.

All 2010 Mustangs and Shelbys feature bright 360-degree rings surrounding the gauge cluster, uninterrupted by the steering column. These rings will come in chrome for the Mustang and a Satin Liquid Chrome finish for the GT500. This finish is featured throughout the interior. An intricate cobra is etched into the center of the aluminum steering wheel badge. The Shelby Cobra appears at startup on the navigation screen, and the familiar red “SVT” logo utilizes new ambient lighting to illuminate the door scuffplate.

“When customers drive this car, they’re not only going to be impressed by the performance and the Shelby heritage, but they’re going to see all these carefully designed details and know they’ve bought a well-crafted car,” Saridakis said.

Even the classic white shift knob – an icon of Shelby Mustang DNA from years past – received special attention. First, it had to be the traditional white. It also had to be specific to the Shelby. The answer was to combine the racing-stripes theme with the traditional “H” pattern found on shifters to create a one-of-a-kind knob. Like the exterior, the racing stripes wrap from end to end, encircling the knob.

Specs & Performance

More horsepower, more refinement, more functionality.

The combination of added horsepower, refinement and functionality makes the 2010 Shelby GT500 a unique high-performance car. The 2010 Shelby GT500 delivers more horsepower and more torque than the outgoing model, thanks in part to advancements pioneered on the GT500KR.

The 2010 Shelby GT500 is powered by a supercharged and intercooled 5.4-liter dual overhead cam V-8 engine expected to produce 540 horsepower and 510 foot-pounds of torque. The redline is 6,250 rpm. The car’s aluminum power dome hood not only adds to the Shelby’s appearance, it helps cool the engine through a hood extractor.

The Shelby’s open-element air induction system features a conical air filter instead of a flat-panel closed system to reduce air restriction. This approach allows more air to be pumped through the engine, producing more power and increasing the engine’s efficiency.

A cold-air intake feeds the coolest air possible directly into the air box, helping further increase horsepower. The intake necessitated moving the Cobra snake badge to the other side of the grille to enable maximum airflow.

The twin-disc clutch on the six-speed manual transmission has been significantly upgraded, improving drivability and NVH. The discs on the 2010 Shelby GT500 are larger – 250 mm in diameter compared with 215 mm in diameter on the outgoing model – and made of copper and fiberglass to make them more robust.

A unique component of the twin-disc system is the control of the intermediate disc. Rather than floating, it instead has six straps that control the engagement of the clutch, improving drivability.

The 2010 Shelby GT500 offers customers improved straight-line acceleration, plus fuel savings when cruising on the highway in the top gears. Gears 1-4 remain the same, but fifth gear changes from .80 to .74 while sixth gear goes from .63 to .50, meaning that the 2010 Shelby GT500 will turn lower engine RPMs in those gears and deliver improved fuel efficiency. The new final drive ratio, from 3.31 to 3.55, enables the improved acceleration in lower gears while complementing the revised fifth and sixth gear ratios.

The Shelby’s distinct sounds will be apparent as always, though with new refinements, thanks to the work of the Noise, Vibration and Harshness (NVH) team. A patented resonator placed between the air filter and engine throttle body helps keep unwanted noise in check.

“You still hear the supercharger but not so that it’s intrusive,” said Kerry Baldori, chief functional engineer for SVT. “It’s the same with the exhaust. You want people to know you’re driving something special, but you don’t want an exhaust note that overpowers the whole interior.

“We spent a lot of time getting the right sound quality out of the exhaust so you get that nice, crisp Shelby sound outside and a pleasant sound inside the cabin. It’s a nice balance; one isn’t overpowering the other.”

Engine

Type: 90-degree, DOHC 32-Valve supercharged V-8
Displacement: 5.4L / 330 CID
Horsepower: 540 hp @ 6200 rpm
Torque: 510 lbs.-ft. @ 4500 rpm
Bore x Stroke: 3.55 in. x 4.17 in.
Compression: 8.4:1

Suspension

Front: Modified (reverse-L) MacPherson strut, 34mm stabilizer bar, coil springs
Rear: 3-link solid axle with coil springs, panhard rod, 24mm solid stabilizer bar

Brakes

Front: 14.0 in. vented Brembo disc, four-piston aluminum caliper
Rear: 11.8 in. vented disc, single-piston caliper
ABS: Four channel, four-sensor ABS system with EBD, linked to all-speed traction control

Wheels/Tires

Wheels: 18 x 9.5 in. machined aluminum wheels with SVT center caps
Tires: Coupe – P255/40ZR-19 Front; P285/35ZR19 Rear
Tires: Convertible – P255/45ZR-18 Front; P285/40ZR-18 Rear

Performance

0-60 mph: 4.5 seconds (Motor Trend)
60-0 mph braking: 112 feet (Motor Trend)
1/4-mile @ MPH: 12.6 seconds @ 114.2 mph (Motor Trend)

Production

Total Produced: 4,458
Total Coupe Produced: 3,545
– Black: 848
– Kona Blue: 845
– Grabber Blue: 525
– Torch Red: 452
– Performance White: 384
– Sterling Grey: 361
– Brilliant Silver: 130
Total Convertible Produced: 913
– Black: 261
– Kona Blue: 177
– Torch Red: 166
– Sterling Grey: 98
– Performance White: 92
– Grabber Blue: 80
– Brilliant Silver: 39

VIN

VIN Decoder Shelby 2010

Pictures

Press Release

DEARBORN, Mich., Jan. 1, 2009 – The new 2010 Ford Shelby GT500 delivers the most power and refinement ever for a Ford SVT-tuned performance Mustang – and a few surprises, too.

“We’re proud of the many enhancements that were developed jointly by the Ford and Shelby Automobiles team last year that we’ve now incorporated into the new 2010 Shelby GT500,” said Carroll Shelby, founder of Shelby Automobiles. “Building on what we learned to create the Shelby GT500KR, this new car offers a great combination of power, handling and braking. It is truly a special car that is a great deal of fun to drive.”

The 2010 Shelby GT500 is powered by a supercharged and intercooled 5.4-liter dual overhead cam V-8 engine expected to produce 540 horsepower and 510 foot-pounds of torque. The redline is 6,250 rpm. The car’s aluminum power dome hood not only adds to the Shelby’s appearance, it helps cool the engine through a hood extractor.

The Shelby’s open-element air induction system features a conical air filter instead of a flat-panel closed system to reduce air restriction. This approach allows more air to be pumped through the engine, producing more power and increasing the engine’s efficiency. A cold-air intake feeds the coolest air possible directly into the air box, helping further increase horsepower. The intake necessitated moving the Cobra snake badge to the other side of the grille to enable maximum airflow.

The twin-disc clutch on the six-speed manual transmission has been significantly upgraded, improving drivability and NVH. The discs on the 2010 Shelby GT500 are larger – 250 mm in diameter compared with 215 mm in diameter on the outgoing model – and made of copper and fiberglass to make them more robust.

A unique component of the twin-disc system is the control of the intermediate disc. Rather than floating, it instead has six straps that control the engagement of the clutch, improving drivability.

The 2010 Shelby GT500 offers customers improved straight-line acceleration, plus fuel savings when cruising on the highway in the top gears. Gears 1-4 remain the same, but fifth gear changes from .80 to .74 while sixth gear goes from .63 to .50, meaning that the 2010 Shelby GT500 will turn lower engine RPMs in those gears and deliver improved fuel efficiency. The new final drive ratio, from 3.31 to 3.55, enables the improved acceleration in lower gears while complementing the revised fifth and sixth gear ratios.

Driving dynamics also are improved, thanks to SVT’s signature chassis tuning as well as new 19-inch Goodyear F1 Supercar tires and forged aluminum wheels on the 2010 Shelby GT500 coupe and 18s on the convertible. Spring and dampers have been optimized for better roll control, giving customers more confidence when braking, accelerating or turning. The new chassis tuning takes its philosophy from the KR program, with a greater emphasis placed on primary body control.

Numerous aerodynamic upgrades, including a redesigned splitter, were made to the front end of the 2010 Shelby GT500. “We worked hard to get as much downforce with as little drag as possible,” Baldori said. “We worked to seal off the air that comes in the front so it can’t go underneath the car. We spent a lot time sealing components such as the radiator and intercoolor to get rid of all the leak paths. “The result of this evolution of aerodynamics is we’ve increased downforce, reduced drag and improved the overall efficiency of the 2010 Shelby GT500.”

Directing the air so it’s used most efficiently was a painstaking process that ultimately will be rewarding to customers. The design of the front fascia and the car’s “flush” hood helps focus air flow. The top grille focuses air into the radiator, with a rubber flap inside the engine compartment helping to seal the system. The lower grille helps cool the intercooler. SVT engineers also went as far to block off specific diamonds in the front of the 2010 Shelby GT500’s distinctive grille to help maintain the correct cooling and aerodynamic balance.

The base 2010 Mustang received a powerful new interior design. For the GT500, the interior design team members challenged themselves to raise the bar even higher to create the ultimate Shelby Mustang interior.

Using genuine materials such as real leather in all seats, real aluminum on the instrument panel and Alcantara inserts on the seats and steering wheel gave the appearance a precisely crafted, jewel-like yet functional feel. “You’ll definitely know you’re in a Shelby,” said Douglas Gaffka, Chief Designer, Shelby GT500.

The genuine aluminum finish panels have a unique-to-GT500 three-dimensional dimpled texture pattern inspired by racing clutch plates, braided hoses and cross-drilled racing brake rotors. The pattern has been painstakingly tuned to compensate for the compound curvature of the instrument panels. In addition, the “GT500” logo has been discretely engraved into the aluminum in front of the passenger as a nod to classic Shelby Mustangs of the 1960s.

This unique aluminum finish panel is fully encapsulated by an exquisite soft seamless TPO (Thermoplastic Olefin) instrument panel with a shape that resonates with Mustang’s powerful heritage. The center stack flows into the console and features a sub-flush shifter trim ring, flush cup holder door and lockable console stowage featuring the word “SHELBY” engraved in its Satin Liquid Chrome release button.

All 2010 Mustangs and Shelbys feature bright 360-degree rings surrounding the gauge cluster, uninterrupted by the steering column. These rings will come in chrome for the Mustang and a Satin Liquid Chrome finish for the GT500. This finish is featured throughout the interior. An intricate cobra is etched into the center of the aluminum steering wheel badge. The Shelby Cobra appears at startup on the navigation screen, and the familiar red “SVT” logo utilizes new ambient lighting to illuminate the door scuffplate.

“When customers drive this car, they’re not only going to be impressed by the performance and the Shelby heritage, but they’re going to see all these carefully designed details and know they’ve bought a well-crafted car,” Saridakis said.

Even the classic white shift knob – an icon of Shelby Mustang DNA from years past – received special attention. First, it had to be the traditional white. It also had to be specific to the Shelby. The answer was to combine the racing-stripes theme with the traditional “H” pattern found on shifters to create a one-of-a-kind knob. Like the exterior, the racing stripes wrap from end to end, encircling the knob.

The 2010 Shelby GT500 will be in dealer showrooms in spring. The cars will be built at the Auto Alliance International Plant in Flat Rock, Mich.
