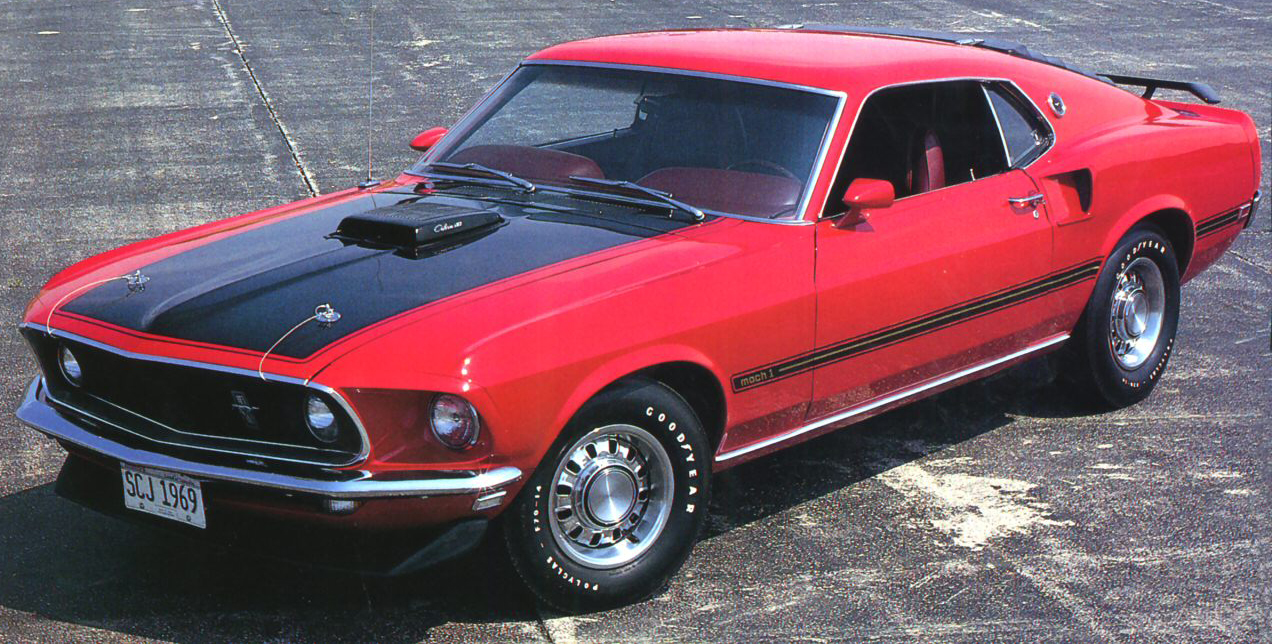

1969 Ford Mustang Mach I

1969 Mustang – Body Information & Diagrams

1969 Ford Mustang Body Information & Diagrams

1969 Mustang Body Diagrams

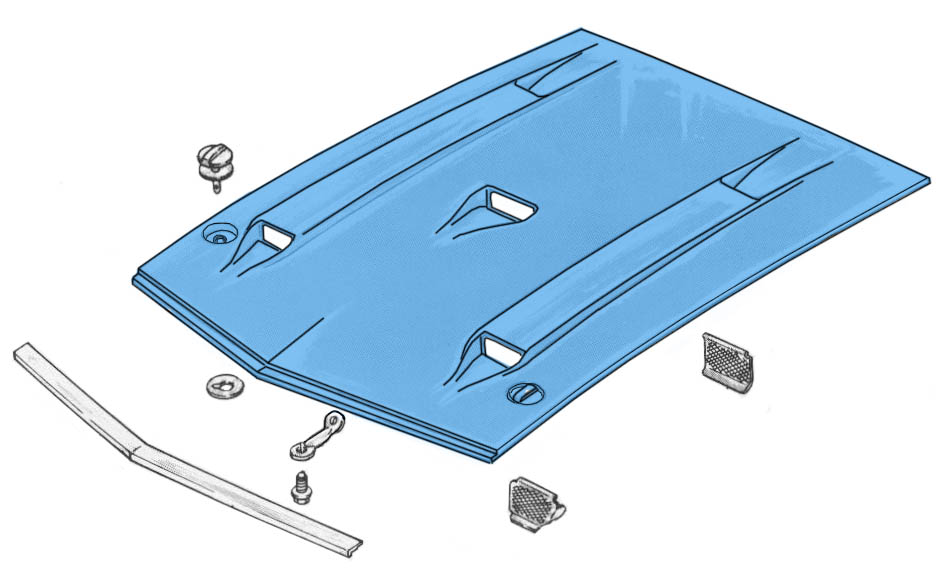

1969 Shelby Hood Drawings

The hood has 5 NASA style scoops. The front two are dummies blocked off by faux grilles, The center one is functional and is used to “ram” air into the air cleaner. The back two are functional as well and draft warmer air out of the engine compartment.

1969 Shelby Hood Drawings

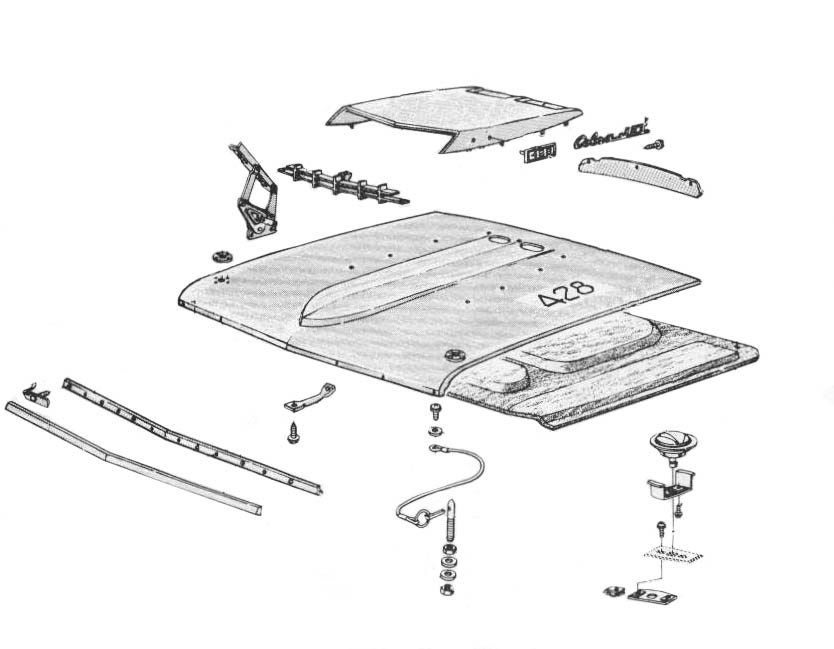

1969 Standard Hood Drawings

1969 Mustang Standard Hood Drawings
