1966 Mustang – Electrical Information & Drawings

Electrical System Drawings & Harnesses for the 1966 Mustang

DIY Mustang fans rejoice because we have found a bunch of important electrical drawings and schematics for the 1966 Mustang. There electrical drawings for 1966 Mustang may not be pretty but that are extremely useful.



Electrical System

Electrical Accessories

Below is the electrical accessories schematic for 1966 Mustang. Electrical Accessories.

1966_accessories

Interior Lights & Gauges

Below is the interior lights and gauges electrical schematic for 1966 Mustang. It includes interior lighting, windshield wipers and gauges. Interior Lights & Gauges.

1966_schematic_inter_light,ww_gauges

Exterior Lights & Horns

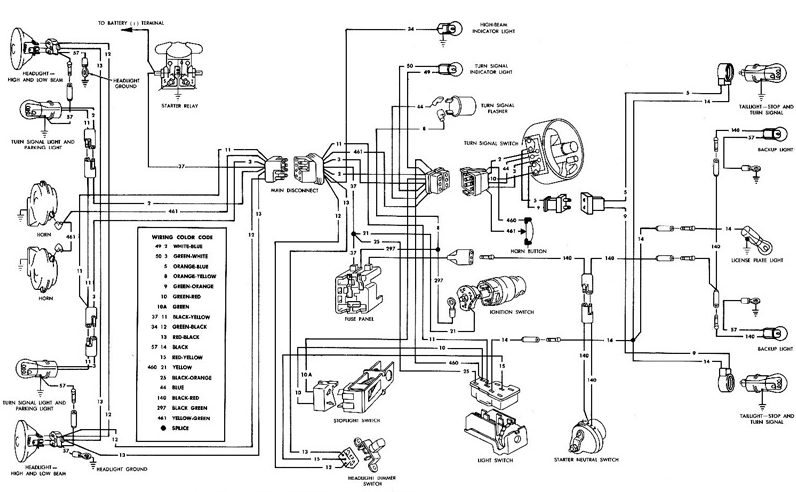

Below is the exterior lights and horns electrical schematic for 1966 Mustang. It includes exterior lighting, turn signals and horns. Exterior Lights & Horns.

1966_schematic_ext_light_ts_horns (1)

Air Conditioning

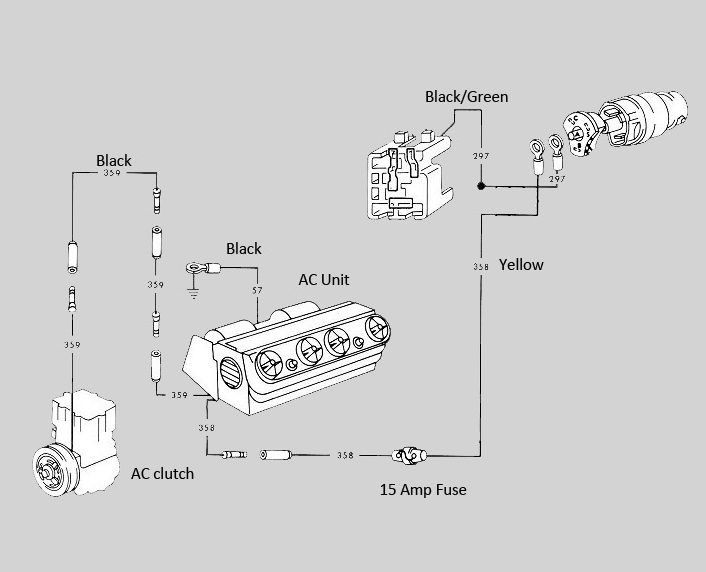

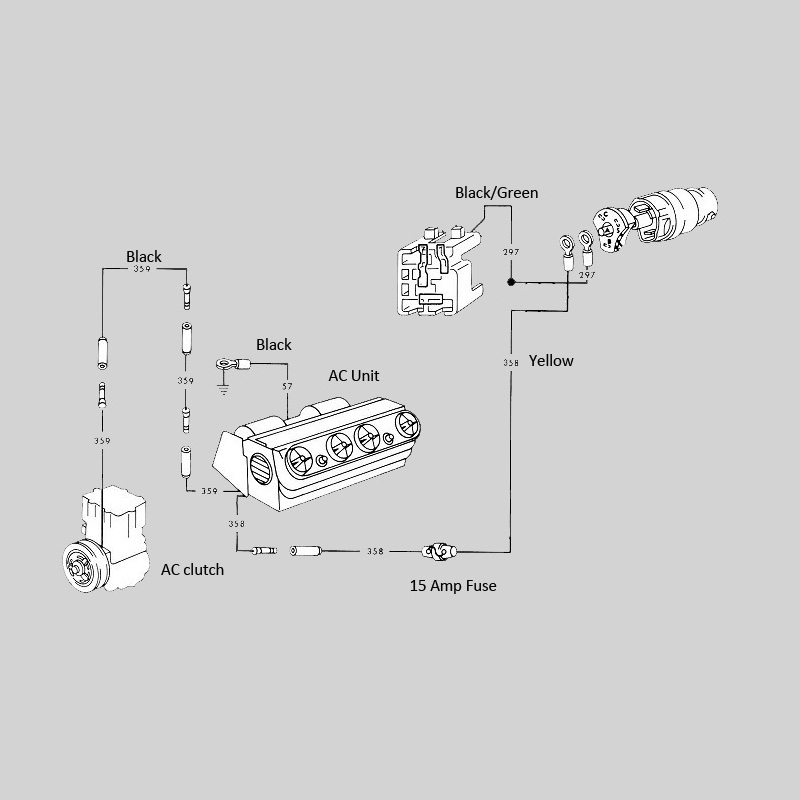

Below is the air conditioning electrical schematic for 1966 Mustang. Air Conditioning.

Electrical Schematic for 1966 Mustang A/C

Cigar Lighter

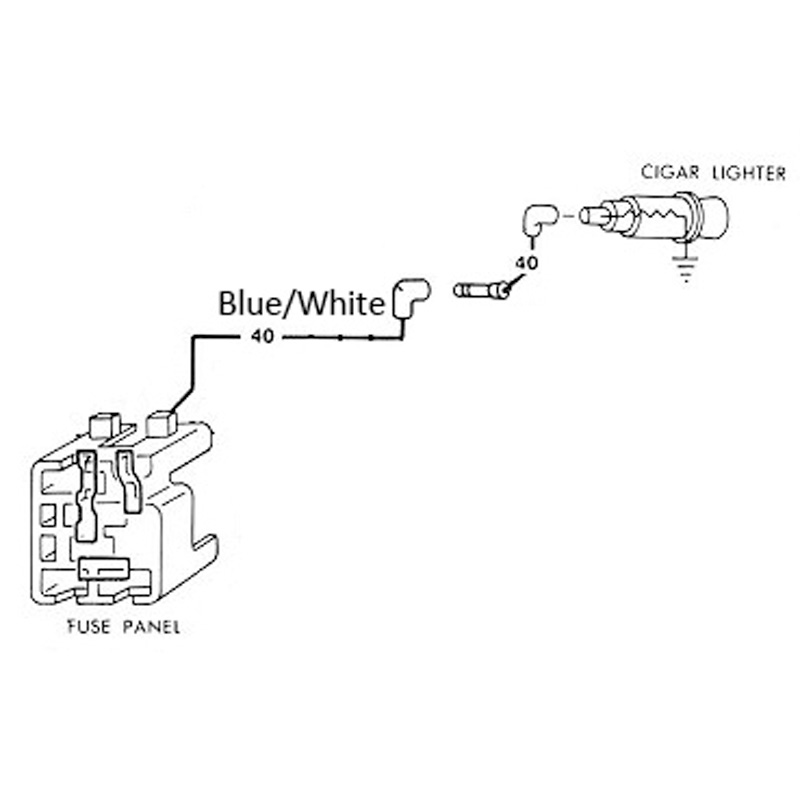

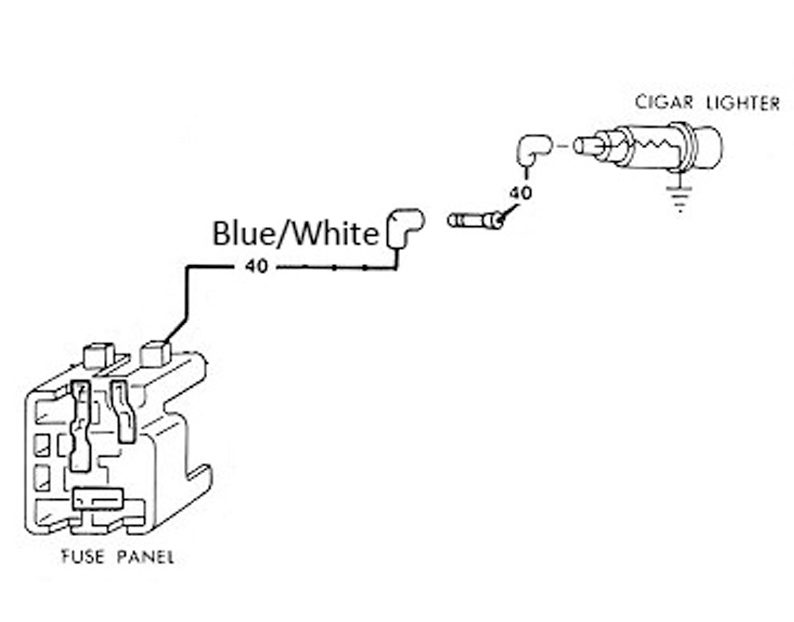

Below is the cigar lighter electrical schematic for a 1966 Mustang. Cigar Lighter

Electrical Schematic for 1966 Mustang Cigar Lighter

Dash Cluster

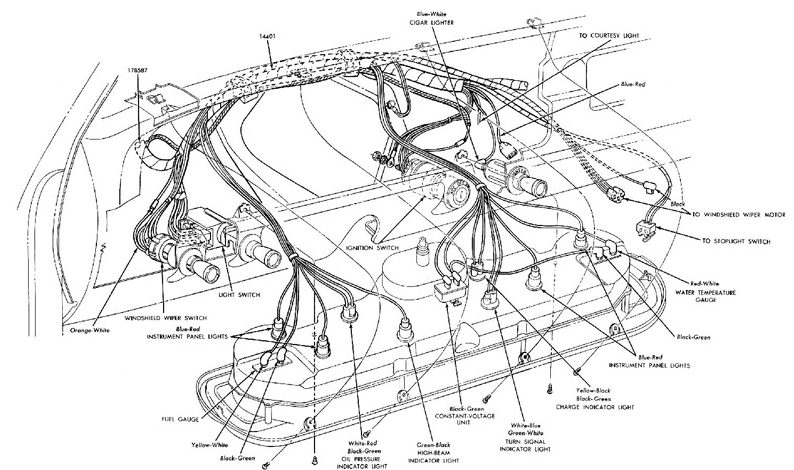

Below is the dash cluster electrical schematic for a 1966 Mustang. It includes the instrument panel with alternator charging system. Dash Cluster.

Electrical Schematic for 1966 Mustang Dash Cluster

Emergency Flashers

Below is the emergency flashers electrical schematic for a 1966 Mustang. It does not include turn signals and horns (see exterior lighting for those). Emergency Flashers.

Electrical Schematic for 1966 Mustang Emergency Flashers

Heater System

Below is the heater electrical schematic for a 1966 Mustang. Heater.

Electrical Schematic for 1966 Mustang Heater

Radio

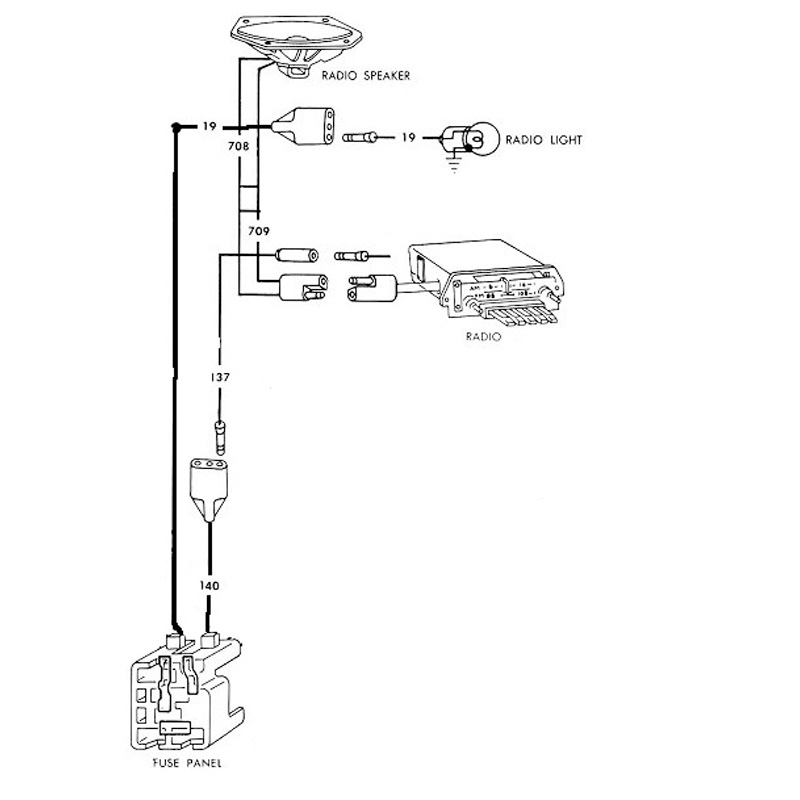

Below is the radio electrical schematic for a 1966 Mustang. Radio.

Electrical Schematic for 1966 Mustang Radio

Seat Belt Warning

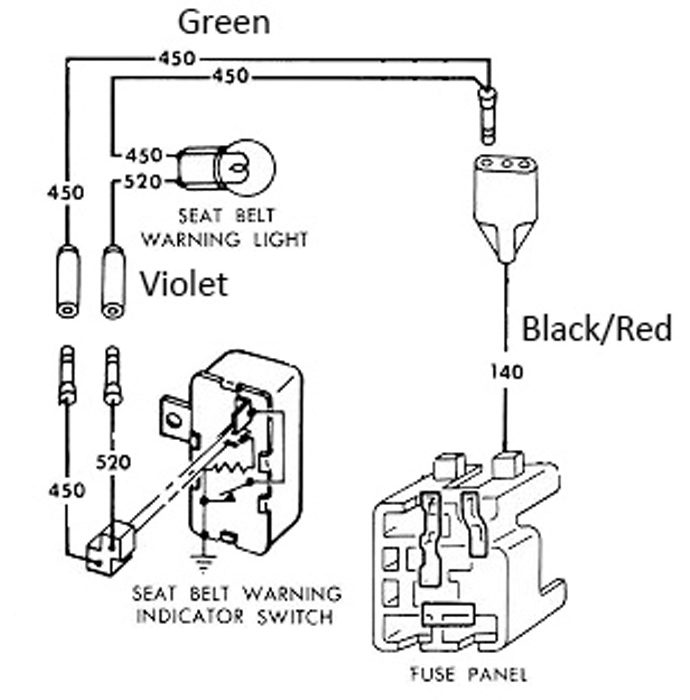

Below is the seat belt electrical schematic for a 1966 Mustang. Seat Belt.

 Electrical Schematic for 1965 Mustang Seat Belt Warning

Tachometer

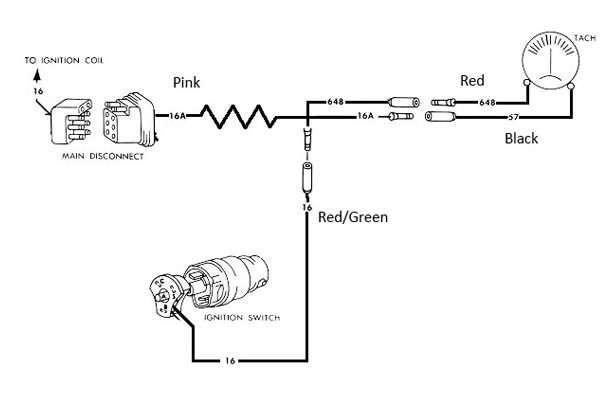

Below is the tachometer electrical schematic for a 1966 Mustang. Tachometer.

1966_tach_electrical

Electrical Harnesses

Below we have electrical harnesses for the 1966 Mustang, including Interior lighting, Interior accessory, Exterior lights, etc., Ignition & Starting

Interior Lighting Harness

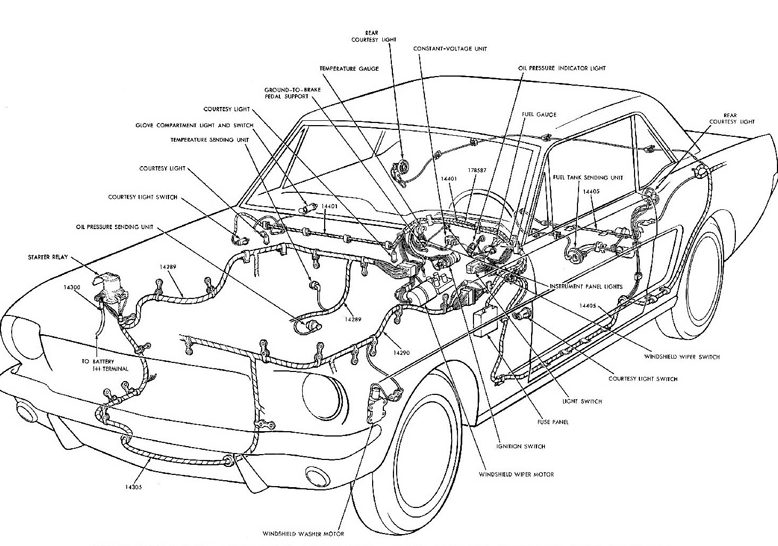

Below is the 1966 Mustang interior lighting harness. It includes interior lighting, windshield wipers and gauges. Download interior light harness image.

Electrical Harness for 1966 Mustang Interior Accessories

Exterior Lighting Harness

Below is the 1966 Mustang exterior lighting harness. It includes exterior lighting, turn signals and horns. Download exterior light harness image.

Electrical Harness Drawing for 1966 Mustang External

Ignition & Charging

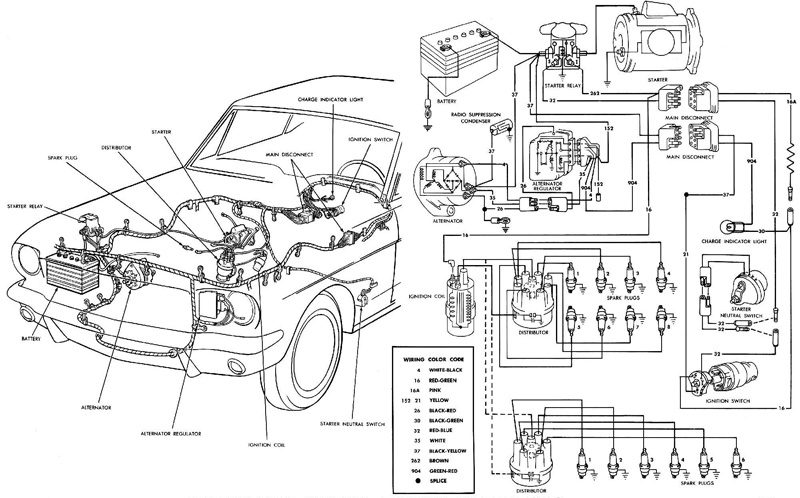

Below is the electrical schematic for the 1966 Mustang ignition and charging system. Download the ignition, starting and charging image.

Electrical Schematic for 1966 Mustang Ignition & Charging

Interior Accessories

Below is the electrical harness for the 1966 Mustang interior accessories and related systems. Download the interior accessories image now.

1966_harness_interior_accessories
